SWR006 - Program for MS Data Loggers

SWR006 Program for Windows - easy-to-use graphic environment data acquisition, including online graph, automatic data download, remote Display mode on Internet-Ethernet network, storing data on the network, administration of users and passwords.

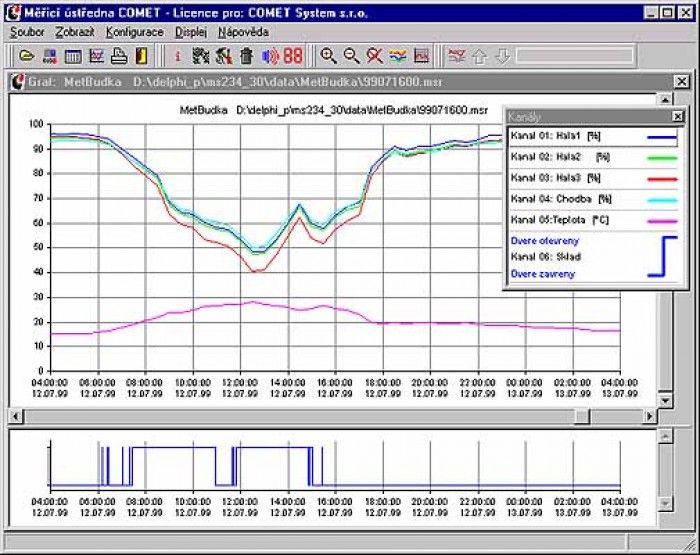

The SWR006 Software is designed for communication with data loggers of MS6, MS5, MS55 families through serial link RS232, USB port, RS485 network, Ethernet interface or via a modem. It enables reading information on actual state and configuration of logger, modifying logger parameters, reading measured values from logger´s memory and displaying of actual values from logger´s inputs. It is possible to view and print out recorded values in numerical and graphical formats.

Other features:

• viewing and printing of any selected part of measured values
• user adjustable axis scale of graphs, colour and width of curves, margin size and other parameters
• printing all curves from input channels together or one by one or to divide graph to several sheets with adjustable length
• two-level curves from binary inputs are displayed in special graph
• colour distinction of values outside of adjusted alarm limits in numerical list and graph
• export of data to dbf or txt formats for consequent processing in other programs (Microsoft Excel)

In "Display" mode it is possible to display actual values from inputs and actual alarm states (similar with display located on logger). Software enables to protect access to some actions (clearing logger memory, configuration etc.) by password. Automatic data reading from logger to PC in preprogrammed intervals is also possible.

Programs exists in two versions - basic version is free of charge, optional version is paid (customer obtains licence card with installation code).

Installation program is common for both versions of program (basic and optional). When program is running first time, it asks installation code - if code is entered, program will run as optional version. If no code is supplied, program will be installed as basic version.

Downloads

SWR006 Software >>
