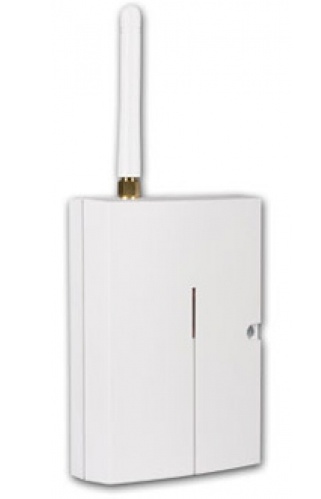

GD-04K GSM Remote Control Unit - 4 Inputs, 2 Relays

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

GD-04K GSM Remote Control Unit - 4 Inputs, 2 Relays

£182.00

(£218.40 Inc. VAT)

16 in stock, immediate despatch

–

+

The GD-04K GSM contoller is a low cost solution to Remote Control and Monitoring via your mobile phone. It has 2 relay outputs and 4 contact closure inputs. Outputs can be set/reset or pulsed with time periods from 1 second to 10 hours by text message or phone call. Inputs can send alert text messages and can make a phone call. Up to 100 authorized numbers can be set for control and reporting. The GD-04K can also be locally set via USB using setting software GD-Link 2.0 or remotely via settings website. Backed-up operation in the case of a power supply failure (for up to 24 hours) is ensured through the connection of the GD-04A backup module (sold separately).

GSM/GPRS Control Unit using SMS text messaging
2 x mains rated relay outputs for switching for example lights, pumps, central heating (Resistive load - max. 2.5A / 250V AC, Inductive (lamp load) - max. 0.5A / 250V AC)
Output switching period in impulse mode adjustable from 1seconds to 10 hours in 1s increments
4 x contact closure inputs from example PIR detectors, flood detectors, security alarm systems etc
Can switch on/off outputs from simple SMS text message
Can send an SMS message when a input changes state
Uses standard mobile phone SIM card, including pre-paid (not the 3 network)
Easy to use and configure via USB, SMS or the internet
Up to 100 authorized numbers can be set for control and reporting.
Supplied with UK/EU mains 12V DC PSU
Supplied with USB programming lead
Optional battery back-up for operation even during mains power failure
Quad band so will work anywhere in the world
GSM antenna, connected to SMA connector
Dimensions 110mm x 77mm x 33mm (without antenna)

The GD-04K GSM contoller is a low cost solution to Remote Control and Monitoring via your mobile phone. It has 2 relay outputs and 4 contact closure inputs. Outputs can be set/reset or pulsed with time periods from 1 second to 10 hours by text message or phone call. Inputs can send alert text messages and can make a phone call. Up to 100 authorized numbers can be set for control and reporting. The GD-04K can also be locally set via USB using setting software GD-Link 2.0 or remotely via settings website. Backed-up operation in the case of a power supply failure (for up to 24 hours) is ensured through the connection of the GD-04A backup module (sold separately).

Programming

USB

Use the GD-Link software

Users - Set up to 100 users with telephone numbers, reports andauthorisation to control.
Inputs - All parameters related to inputs A, B, C, D can be configured such as texts for reporting via SMS, etc.
Output - All parameters related to X and Y outputs can be configured such as texts for control the outputs, reactions, etc.
Settings - Includes advanced settings of the communicator, for example service telephone numbers, pre-paid SIM card credit balance checking, etc.
Texts - Meant for editing system texts reported via SMS according to user requirements. Default texts are in the English language.

The GD-04K can also be programmed using the GD-Link software remotely using a GPRS connection over the internet.

Web

You can program the GD-04K using a simple web interface. Fill in the web form, and the settings are automatically sent to the GD-04K. This service is free.

Go To Programming Web Page >>

Text Message

You can send configuration text messages to program

Downloads

User Manual >>

Programming Software >>

Digital Inputs

4

Digital Outputs

2
