- 16 electro-mechanical relays (2 Amp contacts)
- 16 optically-isolated digital inputs
- 2 counter inputs
- 4 analogue inputs
- One-wire bus for up to 4 temperature and/or humidity sensors
- Control up to 16 relays on other ControlByWeb devices
- Monitor and log power supply (voltage)
- Highly configurable - almost any combination of input/relay control possible
- Real-Time Clock with NTP server synchronization
- Automatic daylight savings and leap year adjustment
- Full calendar scheduling with 100 programmable events
- Email alerts based on user-defined conditions (does not support SSL email servers)
- Built-in web server - No software required
- Customizable web-based control page
- BASIC script support for advanced flexibility
- Configurable logging
- Graphing (logged data)
- Static or DHCP IP address configuration
- XML, Modbus/TCP, and SNMP interface options
- Field updatable
- Removable terminal connector for easy installation
- Rugged DIN-Rail/wall-mountable enclosure (DIN rail clips optional)
- Power Supply: 9-28VDC at 310mA max

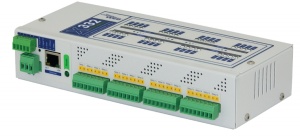

The X-332™ is a robust, full-featured, web-enabled Ethernet I/O module. It has 16 relays, 16 optically-isolated digital inputs, 2 counter inputs, 4 analogue inputs, support for up to four temperature and/or humidity sensors, and the ability to control relays remotely on other ControlByWeb devices. It also has many additional features such as a full calendar scheduler, a BASIC script interpreter, logging, and a real-time clock with NTP synchronization.
The X-332™ has a built-in web server so its relays and inputs can be controlled and monitored using a standard web browser (or by using our CBW Mobile smartphone app). Additionally, temperature and humidity data can be graphed directly from any HTML5 compatible web browser. Email alerts can be configured based on relay and/or input states, and temperature/humidity thresholds.
Some of its many advanced features include the ability to initiate a connection to remote servers, BASIC programming, SNMP, peer-to-peer communications, internal monitoring, etc.
Remote Relays
The X-332 can talk to other ControlbyWeb relay devices to control up to 16 remote relays. A typical example would be shift change bells - use the X-310™ to automatically turn on bells/horns located throughout the factory for shift changes at pre-set times.
Applications
This module is ideal for many applications including security, lighting control, remote control, shift bell controllers, and much more.
Setup
Simply access and configure the X-332™ by using its web-based user interface. There is no software required, no subscription to buy, and no programming necessary for setup or use.
Smartphone App
CBW Mobile is a simple, reliable way to remotely access your ControlByWeb™ products from anywhere in the world. This app lets you create customized control panels to manage a single device or seamlessly integrate multiple devices on one page.
Downloads
Quick Start Guide >>
User Manual >>
SNMP MIB File >>
CBW iPhone/iPad App >>
CBW Android App >>
email Setup >>
Analogue Inputs
4
Digital Inputs
16
Digital Outputs
16
Temperature Inputs
4
