Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.
- Up to 100 scheduled events
- Full calender scheduling
- Automatic daylight savings and leap year adjustment
- Synchronize clock with NTP server for precise time keeping
- Capacitor-backed clock
- 4 x 28VDC 5A relays
- 4 x optically-isolated inputs - 5-12V DC
- Control up to 16 remote relays.
- Input Functions: Monitor State, Control Relays, Control Remote Relays, Count, High Timer
- Maximum Count Frequency: 25Hz
- One-wire bus for up to 4 temperature and/or humidity sensors.
- Automatic and manual control
- Control and configure using a web browser
- No software required
- Customizable web-based control page
- Settings store in non-volatile memory
- BASIC script support for advanced functionality
- Remote services; X-310S-E can be configured to initiate connection to remote server
- HTTP, HTTPS, SNMP, SMTP, Modbus/TCP, DHCP
- Email Alerts - supports SSL (works with free email servers - Gmail, Yahoo, etc.)
- Event and periodic logging
- System voltage and internal temperature monitoring
- Removable 14-terminal connector for easy installation
- Rugged Din-rail mount enclosure
- Power Supply: 802.3af Power Over Ethernet compatible or 5V DC

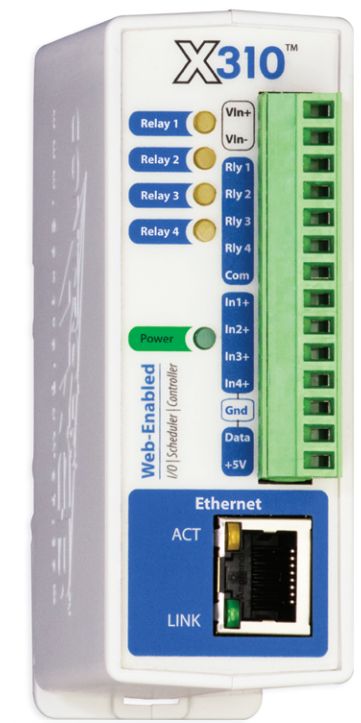

The X-310S-E is a Power Over Ethernet variant web-enabled I/O module with four 5-Amp relays and four optically-isolated digital inputs. It has non-volatile memory for logging, a real-time clock with support for NTP (time server) synchronization and an advanced full-calender scheduler which can be used to turn on/off relays at preset times. Its web-based user interface means it can be used right out of the box with no programming required.
The X-310S-E has many advanced features including a simple firewall, the ability to initiate a connection to remote servers, BASIC programming, SNMP, email alerts, peer-to-peer communications, internal monitoring, etc.
The X-310S-E is ideal for many applications including security, remote control, street sign controllers, shift bell controllers, and much more.

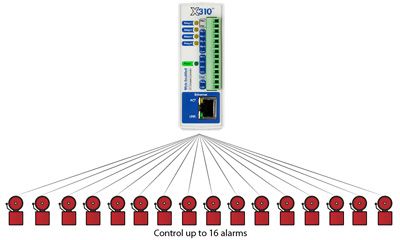

Remote Relays
The X-310S-E can talk to other ControlbyWeb relay devices to control up to 16 remote relays. A typical example would be shift change bells - use the X-310S-E to automatically turn on bells/horns located throughout the factory for shift changes at pre-set times.
Smartphone App
CBW Mobile is a simple, reliable way to remotely access your ControlByWeb™ products from anywhere in the world. This app lets you create customized control panels to manage a single device or seamlessly integrate multiple devices on one page.
Downloads
Quick Start Guide >>
User Manual >>
SNMP MIB File >>
CBW iPhone/iPad App >>
CBW Android App >>
email Setup >>
Digital Inputs
4
Digital Outputs
4
Temperature Inputs
4
Humidity Inputs
4
