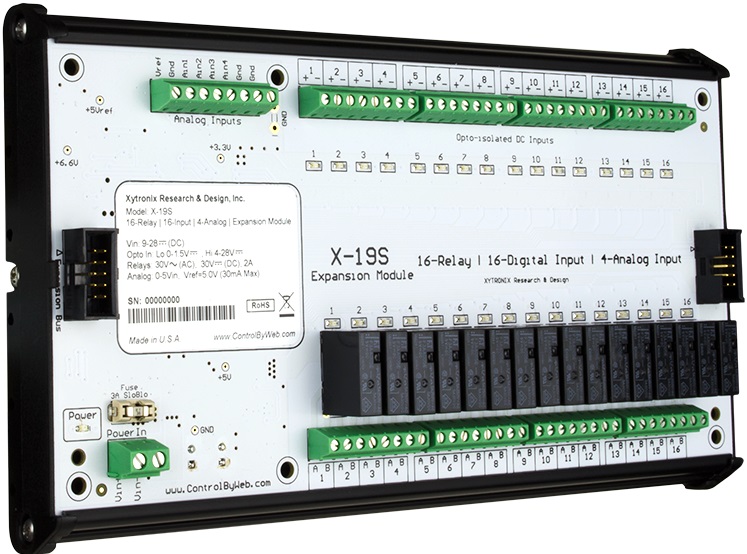

X-19S - 16 Channel Relay, 16 Digital Input, 4 Analogue Input Expansion Module

Zoom

Our Price:  £310.00(£372.00 Inc. VAT) –+ Add to Basket Notify me when this item is available Analogue Inputs:  4 Digital Inputs:  16 Digital Outputs:  16 Availability:      Incoming, 7-10 days Share Tweet The X-19s™ expansion module is used with the X-600M controller. The X-19s has 16 relays, 16 optically-isolated digital inputs, and 4 analogue inputs. Screw terminal strips provide connections to the relays and inputs.  One or more X-19s expansion modules can be connected to an X-600M controller with a ribbon cable which provides both power and communications.

• 16 x  SPST relays (30VAC, 30VDC, 2A) independently controlled
• Relay Functions:
  • On
  • Off
  • Pulse
• 16 x Optically-Isolated Digital Inputs
• Contact closure or Logic 1 voltage: 4-28VDC
• Inputs can also act at 32-bit counters
• Max Count Rate: 100 Hz
• 4 x Analogue inputs - 0-5V at 12-bit resolution
• Power Supply: 9-28 VDC (24V recommended)

The X-19s™ expansion module is used with the X-600M controller. The X-19s has 16 relays, 16 optically-isolated digital inputs, and 4 analog inputs. Screw terminal strips provide connections to the relays and inputs.

The X-19s is suitable for use in many applications from security systems to industrial controls where a high I/O count is required. It can be used to monitor freezer doors, light switches, and pulsed flow meters as well as control moderate loads such as solenoid valves, and lights.

Since the X-19s functions as a slave device to the X-600M, the advanced features of the X-600M can be utilized with this module. For example scheduling, remote relay control, logging, counting, email alerts based upon single input state change or multiple input state changes, analog slope and offset calculations, and many other features are available. Attach multiple X-19s modules or a combination of expansion modules to the X-600M for an I/O combination that is tailored to your specific needs..

Downloads

X-19S User Manual >>
