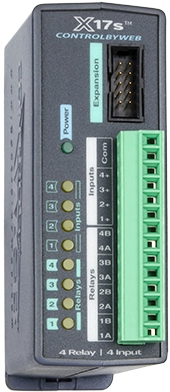

X-17S - 4-Channel Relay, 4-Channel Digital Input Expansion Module

• 4 x  SPST relays (125VAC, 30VDC @ 2.5A) independently controlled
• 4 x optically-isolated digital inputs (common negative)
• Removable connector
• Eight relay LEDs
• Removable terminal connector
• Powered through expansion bus - no separate power supply connections are required

The X-17s™ expansion module is used in conjunction with the X-600M™ controller. The X-17s is a multi-function module with four relays and four optically-isolated digital inputs. One or more X-17s expansion modules can be connected to an X-600M controller with a ribbon cable which provides both power and communications.

The four relays have Form-A contacts (SPST) and can be used to control moderate loads such as solenoid valves, alarms and indicator lights.

The isolated inputs are suitable for use in industrial environments and allow the grounding system of the monitored equipment and the low voltage circuits of the X-17s to be electrically separate. Internally the X-17s has a co-processor which provides enhanced features including: pulse counting, pulse duration, accumulated pulse time and frequency measurements. All four inputs have separate measurements. Programmable de-bounce timers allow glitches and short pulses to be filtered out.

The X-600M together with the X-17s provides an easy, flexible and reliable way to monitor sensors and control devices over a network. The X-17s is suitable for use with security systems, freezer doors, light switches and water meters, as well as with moderate loads such as solenoid valves, alarms and indicator lights

---
