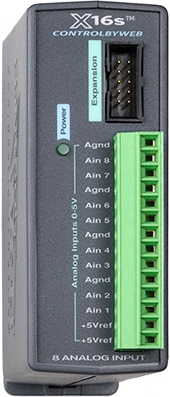

X-16S - 8-Channel Analogue Input Expansion Module

£286.00

(£343.20 Inc. VAT)

Incoming, 7-10 days

–

The X-16s has eight, 0-5V, 24-bit precision analogue inputs and is an expansion module for the X-600M controller.. The X-600M is a web-enabled I/O controller that performs logic control, monitoring, email notifications, scheduling, logging and data graphing functions. Add I/O by connecting expansion modules for a solution that is tailored to your specific application.

Eight Single Ended, 4 Differential Analogue Inputs
0-5V input range with 24-bit resolution
4-20mA inputs (using external 250-ohm resistors)
Removable terminal connector
Powered through expansion bus - no separate power supply connections are required

The X-16s has eight, 0-5V, precision analog inputs and is an expansion module for the X-600M™ controller. The X-16s employs a 24-bit A/D converter and can make both single or differential input measurements. A 5.0V reference output can be used to power potentiometers or other resistance sensing sensors. The X-16s is ideal for measuring precision analog voltages in industrial environments.

One or more X-16s expansion modules can be connected to an X-600M controller with a ribbon cable. The ribbon cable provides both power and communications to the expansion modules

Downloads

X-16S User Manual >>
