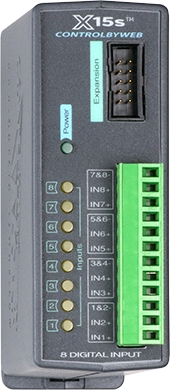

X-15S - 8-Channel Digital Input/Counter Expansion Module

£144.00

(£172.80 Inc. VAT)

Incoming, 7-10 days

–

The X-15s has eight optically-isolated digital/counter inputs and is an expansion module for the X-600M controller.. The X-600M is a web-enabled I/O controller that performs logic control, monitoring, email notifications, scheduling, logging and data graphing functions. Add I/O by connecting expansion modules for a solution that is tailored to your specific application.

8 Optically-isolated digital inputs
Digital input functions:
- Pulse
- Frequency
- Timer
- Count
Eight LEDs for inputs 1-8
Removable terminal connector
Powered through expansion bus - no separate power supply connections are required

The X-15s has eight optically-isolated digital inputs and is an expansion module for the X-600M™ controller. The X-15s' isolated inputs are suitable for industrial environments and allow the grounding system of the monitored equipment and the low voltage circuits of the X-15s to be electrically separate.

Internally the X-15s has a co-processor which provides enhanced features including: pulse counting, pulse duration, accumulated pulse time and frequency measurements. All 8-inputs have separate measurements.

One or more X-15s expansion modules can be connected to an X-600M controller with a ribbon cable. The ribbon cable provides both power and communications to the expansion modules.

Downloads

X-15S User Manual >>
