Papago PGO_2TH_W - WiFi 2-Channel Temperature and Humidity Unit with Web Server, SNMP ,email

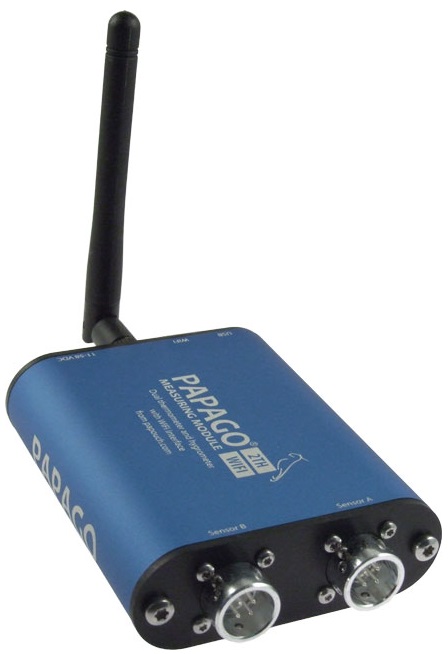

The Papago PGO_2TH_W is an WiFi alarm unit accepting 2 temperature or 2 combined temperature and humidity sensor probes. The Papago PGO_2TH_W is web based, with monitoring and setup all performed via any web browser. emails can be sent on alarm and the unit supports TCP, UDP, HTTP (WEB), SMTP (e-mail), SOAP, Modbus TCP and SNMP protocols. The FREE Wix chart/data logging software is also available.
- WiFi based Temperature or Humidity Alarm unit
- Accepts 2 external sensors (sensors are not included)
- SNS_TEMP sensors: range -55 to +125 °C
- SNS_THE sensors:
- temperature range: -40 to +123.8 °C
- humidity range: 0 to 100 % RH and dew point
- Measurements per second: 1, 2 or 5 according to the settings
- Network and WiFi parameters configurable via USB.
- Automatic e-mail alarms when pre-set thresholds are exceeded.
- Internal memory and real-time clock. Measured data including the time of measurement is automatically stored in the memory in the event that communication is lost. The data is automatically sent after the connection is restored
- SNMP and MODBUS TCP protocols - simple to integrate with management or SCADA software
- Automatic temperature sending via HTTP GET request.
- Automatic temperature sending via HTTP POST in XML format.
- All parameters easily accessible in XML format.
- WiFi 2.4 GHz (IEEE 802.11 b/g and IEEE 802.11n (one stream), IEEE 802.11 d/h/i/j/k/w/r)
- FREE Wix software for displaying and logging temperature values
- Power Supply: External power supply 11 to 58 V DC
- Typical power consumption 1.8 W
- Dimensions (without connectors): 88 × 70 × 25 mm
- Operating temperature range: -20 to +70 °C
- Package contents: Papago 2TH WIFI, small antenna, mini USB cable, UK power adaptor 15V/0,8A)
WEB page
It is possible to easy monitor the measured temperatures and also to configure PGO_2TH_W over the Intranet interface. The pages are secured by means of user name and password. It is possible to setup a separate password for the configuration and another one for the display of current values.
XML file
It is also possible to import all the values from PGO_2TH_W in the XML file format. This format is easy to process by the application or to read by the web service.
SNMP protocol
The SNMP protocol is used in large companies for the centralized administration and monitoring of all hardware and technologies. PGO_2TH_W is able to communicate via this protocol and, according to the setup, It sends SNMP traps when the pre-set critical limits are exceeded. It is also able to periodically send traps with current values.
E-mail
The PGO_2TH_W can send e-mails if one of the thresholds set for any of the measuring channels has been exceeded.
TCP or UDP protocol
The is also able to operate as the TCP client or TCP server or to communicate via UDP. An ASCII protocol is used by PGO_2TH_W in these ways of communication. This way of communication is similar to the serial link communication.
MODBUS TCP protocol
PGO_2TH_W is also able to communicate via the standard industry protocol of MODBUS TCP use by popular SCADA packages such as DAQFactory
Wix - FREE Powerful datalogging, charting and alarming sftware | | - Display of numeric values.
- Viewing the colour column (ie bar graph) with colour according to the current value.
- View the text of the current value.
- View the chart - add several charts, add channels to a single chart
- Datalogging - Save the history of measurement in a text file for further processing or evaluation.
- Wix can monitor inputs against pre-set alarm limits;
- Send alarm e-mail
- Switching on output (relay) to Quido
- Reset the counter (counter) input Quido
- Send alarm text message by SMS (requires GSM MODEM)
|
Downloads
User Manual >>
Wifi Configurator Software >>
SNMP MIB table >>
Wix Software Download >>
Temperature Inputs
2
Humidity Inputs
2
