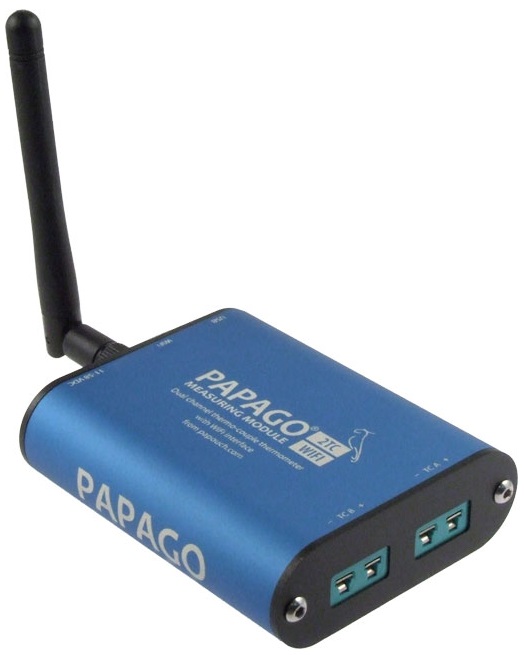

Papago PGO_2TC_W - WiFi Type K Thermocouple Thermometer with Web Server, SNMP ,email

Zoom

Our Price:  £182.00(£218.40 Inc. VAT) –+ Add to Basket Notify me when this item is available Add DIN Rail Clip:    + £8.00 Temperature Inputs:  2 Availability:      Incoming, 1-2 days Share Tweet The Papago PGO_2TC_W is an WiFi temperature alarm unit accepting 2 x type-k thermocouples, offering a temperature measurement range of -50°C to +1350°C. The Papago PGO_2TC_W is web based, with monitoring and setup all performed via any web browser. emails can be sent on alarm and the unit supports TCP, UDP, HTTP (WEB), SMTP (e-mail), SOAP, Modbus TCP and SNMP protocols. The FREE Wix chart/data logging software is also available.

• WiFi based Temperature Alarm unit
• Measures two external type-k thermocouples (not included)
• Connection via standard thermocouple connector
• Range: -50 to +1350°C, increment 0.1°C
• Measurements per second: 1, 2 or 5 according to the settings
• Network and WiFi parameters configurable via USB.
• Automatic e-mail alarms when pre-set thresholds are exceeded.
• Internal memory and real-time clock. Measured data including the time of measurement is automatically stored in the memory in the event that communication is lost. The data is automatically sent after the connection is restored
• SNMP and MODBUS TCP protocols - simple to integrate with management or SCADA software
• Automatic temperature sending via HTTP GET request.
• Automatic temperature sending via HTTP POST in XML format.
• Temperature and all settings easily accessible in XML format.
• WiFi 2.4 GHz (IEEE 802.11 b/g and IEEE 802.11n (one stream), IEEE 802.11 d/h/i/j/k/w/r)
• FREE Wix software for displaying and logging temperature values
• Both sensors connected to a removable screw terminal block
• Power Supply: External power supply 11 to 58 V DC
• Typical power consumption 1.8 W
• Dimensions (without connectors): 88 × 70 × 25 mm
• Operating temperature range: -20 to +70 °C
• Package contents: Papago 2TH WIFI, small antenna, mini USB cable, UK power adaptor 15V/0,8A)

WEB page

It is possible to easy monitor the measured temperatures and also to configure PGO_2TC_W over the Intranet interface. The pages are secured by means of user name and password. It is possible to setup a separate password for the configuration and another one for the display of current values.

XML file

It is also possible to import all the values from PGO_2TC_W in the XML file format. This format is easy to process by the application or to read by the web service.

SNMP protocol

The SNMP protocol is used in large companies for the centralized administration and monitoring of all hardware and technologies. PGO_2TC_W is able to communicate via this protocol and, according to the setup, It sends SNMP traps when the pre-set critical limits are exceeded. It is also able to periodically send traps with current values.

E-mail

The PGO_2TC_W can send e-mails if one of the thresholds set for any of the measuring channels has been exceeded.

TCP or UDP protocol

The is also able to operate as the TCP client or TCP server or to communicate via UDP. An ASCII protocol is used by PGO_2TC_W in these ways of communication. This way of communication is similar to the serial link communication.

MODBUS TCP protocol

PGO_2TC_W is also able to communicate via the standard industry protocol of MODBUS TCP use by popular SCADA packages such as DAQFactory

Display of numeric values. Viewing the colour column (ie bar graph) with colour according to the current value. View the text of the current value. View the chart - add several charts, add channels to a single chart Datalogging - Save the history of measurement in a text file for further processing or evaluation. Wix can monitor inputs against pre-set alarm limits; Send alarm e-mail Switching on output (relay) to Quido Reset the counter (counter) input Quido Send alarm text message by SMS (requires GSM MODEM)
