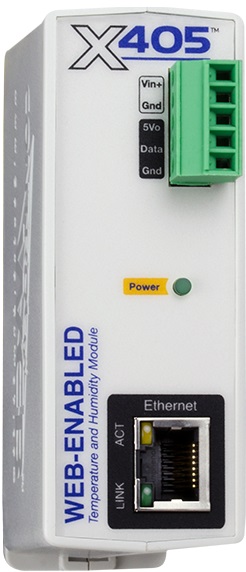

X-405-E POE Web-Enabled Multichannel Temperature and Humidity Module

• One-wire bus for up to 16 temperature and/or humidity sensors
• Send email alerts based on user-defined conditions
• Supports encrypted email servers, such as Gmail
• Configurable logging (Log File Size: 512K (up to 8,448 logs)
• Graphing (logged data)
• Control, monitor, and log 32 remote modules, or up to 100 I/O
• User Permissions: Admin, Manager,
• UserTasks
  • 50 Scheduled
  • 50 Conditional
  • 16 Automatic Reboot
  • 20 Override Schedules
• Real-Time Clock with NTP server synchronization
• Automatic daylight savings and leap year adjustment
• No software required
• Customizable web-based control page
• BASIC script support for advanced flexibility
• HTTPS/TLS encrypted
• Static or DHCP IP address configuration
• Modbus, SNMP, Remote Service, IP Filtering
• Field updatable
• Removable 14-Terminal connector for easy installation
• Rugged DIN-Rail/wall-mountable enclosure
• Power: POE (802.3af compliant) or 9-28 VDC Power Supply
• Size: 35mmx 98mmx 78mm

Applications

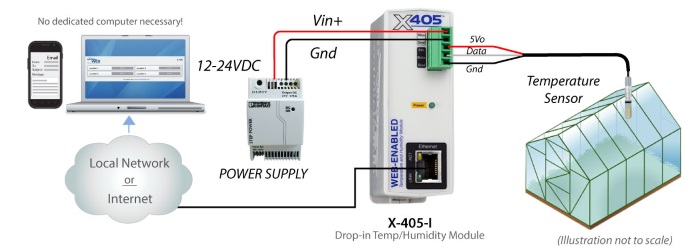

The X-405 can monitor the temperature and humidity of the greenhouse, and can be configured to send email alerts if the temperature or humidity goes outside user-specified parameters.

The X-405 can also be used with other ControlByWeb products for larger applications. Using the peer-to-peer communication, The X-405 can share temperature data with other controllers in other parts of the building.

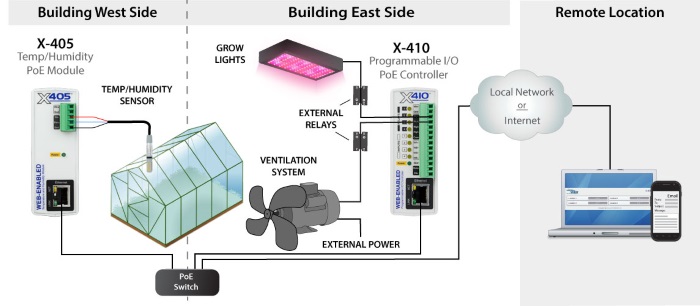

The following illustration shows the X-405 communicating with the X-410. With both PoE enabled modules, you have complete control over greenhouse environment from anywhere in the world.

Logging

The X-405 offers the ability to log a variety of data points such as local and remote I/O, registers, tasks, and voltage. Log entries can be made at preset intervals, scheduled times, triggered by I/O changes, or triggered by logic events. Graph the current log file and view the I/O's status over time. Schedule a daily log file to be sent via email or uploaded via FTP server.

Control up to 100 I/O

The X-405 supports machine-to-machine communication between ControlByWeb modules. It supports communications with up to 32 modules and allows you to monitor and control up to 100 I/O points. The X-410 can communicate with ControlByWeb devices* but offers instantaneous messaging between X-400 series products. The X-410 can monitor and control I/O on other X-400 series products as if it were all one big module.

Task Builder

The X-405's built-in interface allows you to create custom "Tasks" for simple and advanced control logic. Easily create tasks based on time, input or outputs’ status, or device responsiveness. Create up to three actions for each task providing you with the ultimate control and monitoring solution for your application!

Create up to 50 Scheduled, 50 Conditional, 16 Auto Reboot Tasks, and 20 Override Schedules.

• Conditional Tasks - Conditional tasks are triggered depending on an I/O's status. Conditional tasks are commonly used for sending high/low temperature alerts, controlling alarms, etc.
• Scheduled Tasks - Scheduled tasks perform actions at preset times on specific days. You can also choose to override these scheduled tasks on certain days (i.e., Holidays). Scheduled tasks are commonly used for controlling shift bells, parking lot/stadium lights, magnetic locks, generators, etc.
• Advanced Logic - Automatically reboot devices (cameras, routers, servers, etc.) when they become unresponsive. Also write BASIC scripts for more advanced logic.

Other Advanced Features

The X-405 has more advanced features such as the ability to initiate a connection to remote servers, BASIC programming, admin/manager/user permissions, etc.

Smartphone App

CBW Mobile is a simple, reliable way to remotely access your ControlByWeb™ products from anywhere in the world. This app lets you create customized control panels to manage a single device or seamlessly integrate multiple devices on one page.
