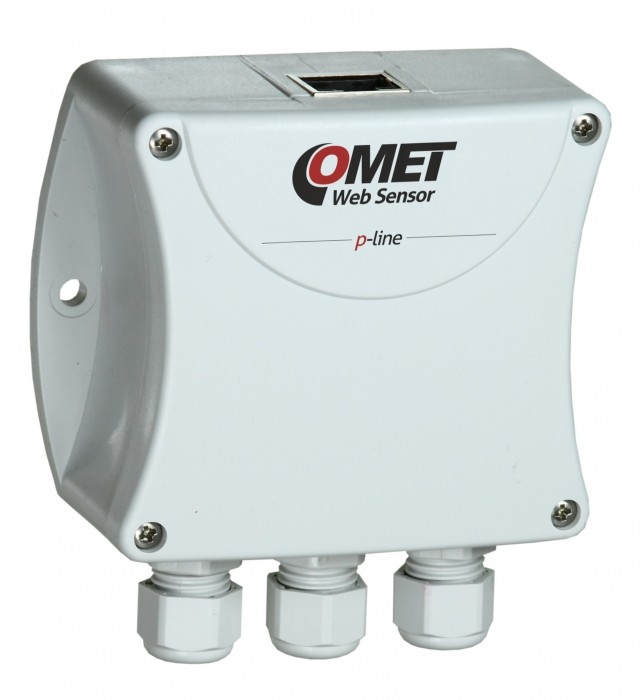

P2520 - Ethernet 2-channel 4-20mA alarm unit with email and datalogging

Zoom

Our Price: £162.00(£194.40 Inc. VAT)

–+

Notify me when this item is available

Add UK 12V DC Mains PSU:	+ £10.00
Add EU 12V DC Mains PSU:	+ £10.00

Analogue Inputs: 2

Availability:

Incoming, 10-14 days

A low-cost Ethernet solution for monitoring 2 x 0-20mA or 4-0mA process control current loops. Featuring email and SNMP under/over alarm, a built-in webserver for real time display and history chart and MODBUS protocol for SCADA compatibility

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

Ethernet based process control alarm unit with 2 x 0-20mA or 4-20mA inputs
Input impedance 20Ω
Conversion to engineering units
High and low alarm limits
email or SNMP alarm notification
supports up to 3 email addresses
Web browser interface showing real time values and history chart
100 sample memory history for each channel - can export to Excel file
History record rate from 10 s to 18 h
Modbus TCP protocol for communication with SCADA software such as DAQFactory and LabVIEW
Standard RJ45 ethernet connector
power Supply: 9-30V DC
Dimensions: 88 x 126 x 39,5 mm (W x H x D)
Temperature operating range -30 to +80°C

The P2520 is designed for measurement of 0-20mA or 4-20mA process control current loops. It is possible to read values from PC through the Ethernet connection. The following formats are supported:

www pages with user-design possibility
Modbus protocol
SNMPv1 protocol
SOAP

The instrument may send a warning message to several defined points if the measured value gets out of adjusted limits. There are the following possible ways to deliver the warning report:

to send an e-mail to maximum of three e-mail addresses
to send a SNMP trap to maximum of three IP addresses
to display an alarm state on the device www page
to send a message to Syslog server

Alarm limits may be set via the supplied TSensor program, Modbus or Telnet protocols. The alarm state may be read via the device www pages, Modbus or the SNMPv1 protocol. If channel isn’t wired, it is possible to turn off measured channel.

The P2520 has a built-in web server showing current values, alarm limits alarm state and recorded history in both tabular and chart formats. It can be viewed by any web browser. Measured value is in graph displayed by green colour, error or not yet measured values are displayed as grey broken line. Upper (lower) alarm value is in graph displayed as red (blue) line. If all values are over upper (lower) limit, the alarm line will be in the bottom (top) graph part displayed. It is possible export history to CSV file (comma or dot decimal separator) for import to Excel.

Example Pages >>

email

When alarm limits are exceeded, an e-mail message is sent to addresses defined by the user (maximum three addresses). Maximum length of an e-mail address is 55 characters.

SNMP

By means of the SNMPv1 protocol it is possible to find currently measured values and parameters concerning alarms. In case of alarm activation, warning message (a trap) can be sent to specified addresses. By means of the SNMPv1 protocol it is also possible to display history of last 600 measured values.

MODBUS

The device contains support for the Modbus protocol to communicate with control systems. The protocol runs in the RTU mode.

Software

Comet Database

Complex solution for data acquisition and analysing. Easy to use and high flexible Database software for Comet Web Sensors and Regulators.

T-Sensor software

Free configuration utility for Comet Transmitters and Regulators.

SensorReader software

Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.

Downloads

Quick Start guide >>

User Manual >>

TSensor - free configuration program version >>

SensorReader - free program for data recording from one sensor >>

SNMP MIB Tables >>
