TMU - USB Thermometer

• Temperature range from –55 °C to +125 °C; resolution 0.1 °C
• Accuracy - 0.5 °C within the range from –10 °C to +85 °C; outside -2 °C
• USB interface
• Temperature data in ASCII format
• 3m sensor cable
• No numerical conversion of temperature values is necessary
• Power supply from the USB interface
• Dimensions - 54 × 33 × 24 mm
• FREE Wix software for displaying values from TMU (and other devices)
• Drivers for use with Windows ME, 2000, XP, Vista, 7, Linux, MAC OS, Win CE.NET - Download >>

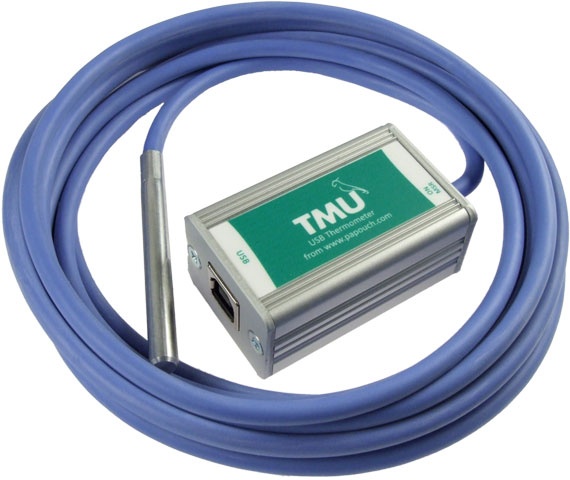

TMU is a simple thermometer with a USB interface. The thermometer uses the USB interface for communication and also as a power source. It measures temperatures from –55 °C to +125 °C. The communication utilises a simple ASCII protocol. Temperature values are transmitted in degrees Celsius; no numerical conversion is necessary.

The thermometer can be used in various situations requiring temperature measurements within the range from –55 °C to +125 °C with a 0.1 °C resolution. The temperature sensor's standard cable is 3 m long and admits a temperature range from – 10 °C to +80 °C. Optionally, a temperature sensor on a cable of up to 20 m long can be delivered. Another optional feature is a cable admitting a temperature range from –55 °C to +150 °C.

Wix - FREE Powerful datalogging, charting and alarming sftware

Display of numeric values. Viewing the colour column (ie bar graph) with colour according to the current value. View the text of the current value. View the chart - add several charts, add channels to a single chart Datalogging - Save the history of measurement in a text file for further processing or evaluation. Wix can monitor inputs against pre-set alarm limits; Send alarm e-mail Switching on output (relay) to Quido Reset the counter (counter) input Quido Send alarm text message by SMS (requires GSM MODEM)

Downloads

User Manual >>

USB Drivers >>

Example Software >>

 Wix Software Download >>
