SB485 - USB to RS485/RS422 isolated converter

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

SB485 - USB to RS485/RS422 isolated converter

£115.00

(£138.00 Inc. VAT)

Plug terminal or D-SUB connector

–

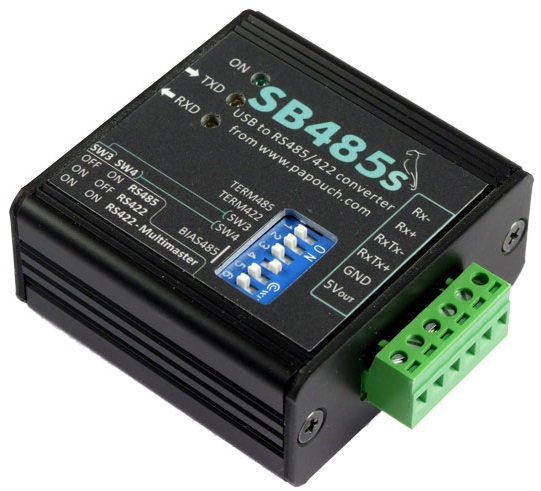

USB to RS422 or USB to RS485 serial converter. The SB485 is a self-contained unit, obtaining it's power from the USB port. Industrial grade with 3kV opto-isolation and internal high-speed transient suppressors on each data line to protect from dangerous voltages levels or spikes. Supplied with virtual serial port software to mimic a traditional serial port for use with legacy software.

Conversion of USB to RS485, RS422 and RS422 Multimaster (Multidrop) industrial lines
Access to the serial line via a virtual serial port
Automatic data flow switching without delay
Galvanic isolation of USB from the serial line
Data transfer rate up to 3 Mb/s
User-configurable termination of the RS485/RS422 line
Indication of power on and data flow by three indicators (ON, TXD, RXD)
PC protection against overvoltage
A unique serial number that allows the user – via USB-HUB – to connect multiple converters together with other USB devices
Connection to a PC via standard USB cable supplied with the converter
Supplied with DIN rail Mount
5 V power supply from the USB interface
Working temperature range: -40 to +85 °C
Dimensions: 54 x 62 x 24 mm
Supported operating systems: Windows 32bit/64bit, Linux, MAC OS, Android
