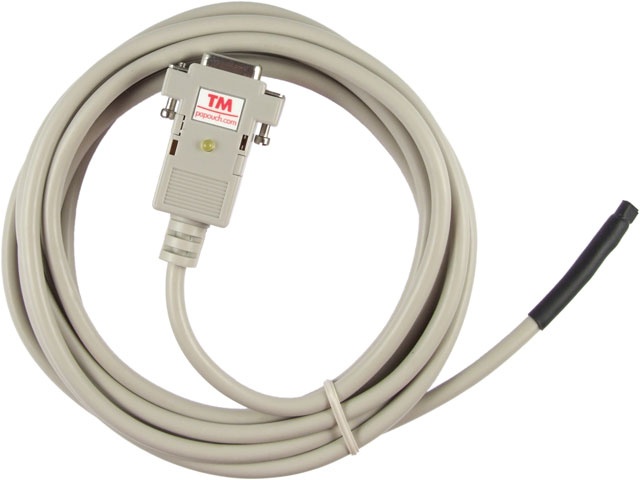

TM - RS232 Thermometer

Zoom

Our Price: £20.00(£24.00 Inc. VAT)

–+

Sensor Cable Length:

Availability:

6 in stock, immediate despatch

The TM is a thermometer with a direct output to RS232. Measurement range from –55°C to +125°C. A direct text output of the temperature value in °C (ASCII) no conversion is needed. The FREE Wix chart/data logging software is also available.

Temperature range from –55 °C to +125 °C; resolution 0.1 °C
Accuracy - 0.5 °C within the range from –10 °C to +85 °C; outside -2 °C
3m Sesnor cable
Connects to a serial port (COM) via 9-way D-type
Port powered
Temperature data in ASCII format
No numerical conversion of temperature values is necessary
FREE Wix software for displaying values from TM (and other devices)

TM is a simple thermometer with a RS232 interface. The thermometer uses the RS232 interface for communication and also as a power source. It measures temperatures from –55 °C to +125 °C. The communication utilises a simple ASCII protocol. Temperature values are transmitted in degrees Celsius; no numerical conversion is necessary.

The thermometer can be used in various situations requiring temperature measurements within the range from –55 °C to +125 °C with a 0.1 °C resolution. The temperature sensor's standard cable is 3 m long and admits a temperature range from – 10 °C to +80 °C. Optionally, a temperature sensor on a cable of up to 20 m long can be delivered. Another optional feature is a cable admitting a temperature range from –55 °C to +150 °C.

Wix - FREE Powerful datalogging, charting and alarming sftware

Display of numeric values.
Viewing the colour column (ie bar graph) with colour according to the current value.
View the text of the current value.
View the chart - add several charts, add channels to a single chart
Datalogging - Save the history of measurement in a text file for further processing or evaluation.
Wix can monitor inputs against pre-set alarm limits;

Send alarm e-mail
Switching on output (relay) to Quido
Reset the counter (counter) input Quido
Send alarm text message by SMS (requires GSM MODEM)

Downloads

User Manual >>

Example Software >>

Wix Software Download >>
