VT604 Power Distribution Unit wih Environmental Monitoring

The VT604 is a rack-mount 4-channel Power Distribution unit with environmental monitoring and alarm in server room, data centre, museum, medical and industrial environment monitoring applications. Featuring a web interface and 4 switched IEC mains sockets, 2 sensors ports, 2 digital inputs , two relay outputs, CAN bus, alarm notifications via SNMP, E-mail, web or beacons,  accepts a USB camera or up to 4 IP cameras. Web interface features a dashboard giving overview, simple control logic to set up alerts, notifications and actions and sensor chart displays with data export.

• Ethernet based Power Distribution Unit and environmental alarm unit
• 4 Switched mains IEC outlets, rated 5A each, 10A total
• Outputs controlled via web page or via logic scheme, such as PING reboot, over temperature, etc
• 2 AutoSense RJ-12 ports for sensors such as;
  • VT420 - Converter 4-20mA
  • VT500 - Temperature sensor
  • VT501 - Outdoor temperature sensor
  • VT510 - Humidity sensor
  • VT520 - AC voltage monitor
  • VT530 - Access sensor for eg a door or a window: opened, closed.
  • VT540 - Vibration sensor
  • VT560 - Smoke detector - allows daisy chain connection
  • VT570 - PIR sensor Infrared motion sensor
  • VT590 - Leak sensor
  • VT591 - Water leak cable
• 2 dry contact inputs (terminal plug included)
• 2 x relay outputs rated 12V 0.25A
• Internal Temperature Sensor
• CAN bus port for networked sensors over a wide area such as;
  • VT440 - Dry contacts unit
  • VT460 - Smoke, humidity and temperature sensor
  • VT490 - Dual humidity and temperature sensor
• Optional internal GSM Modem - get text message alarm notifications and remotely control via text message
• USB port for web camera
• supports 4 x IP Cameras
• Web interface
• Virtual sensors & elements: Group, E-mail, SNMP trap, SNMP Get, SMS, IP cams, PINGs, Triggers, Timers
• SNMP traps, SMS & E-mail notifications
• Supports SNMP v.1, v.2c, v.3
• Notifications: E-mail, SMS, Syslog, Event log, SNMP Trap, SNMP Get
• Configurable embedded logic
• Sensor graphing
• User Access and Permissions
• Dimensions:  W139 x H33.1 x D79mm
• Weight:  0.5 kg
• Operating characteristics     Humidity : Min. 5% - Max. 95% (Non-Condensing), Temperature : Min. -10° C - Max.80° C
• Mounting:  Wall mount, Desktop, Wall turnable mount (with extension), 19" rack mount holes (brackets not included)

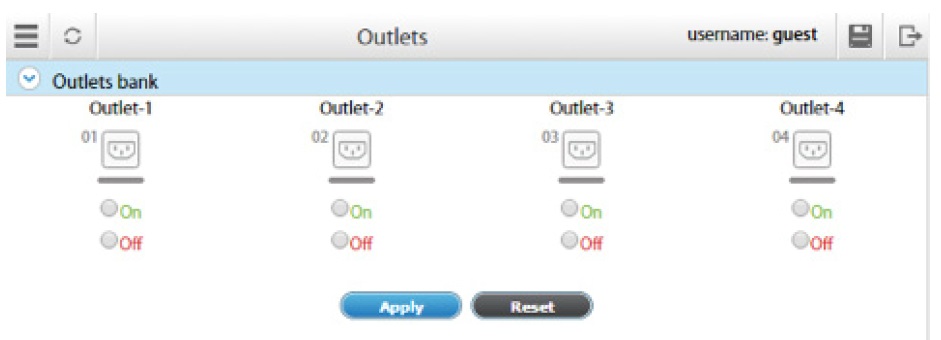

The VT604 series has a built-in web server showing socket control, overall status and system tree, the status of dry contact inputs from doors and windows, and an event log

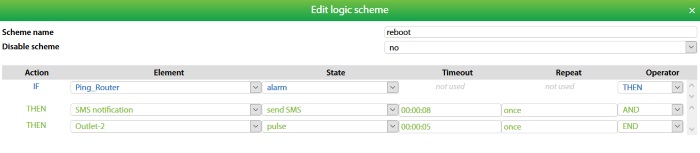

In addition to manual control, the outlest can be controlled via a logic scheme. In this example, a router is sending a PING periodically. If no response is received, a text message notification is sent (requires GSM option) and an outlet is power cycled.

CAN bus Expansion

Connecting CAN devices on a common bus allows you to collect data from a large number of sensors over a large area, or from a longer distance. Up to 32 devices can be added to the CAN interface and this can be further increased with a VT604 CAN bus extender.

GSM Modem

The VT604 can be factory fitted with a GSM modem which allows for SMS text message notification of alarms and remote operation.

Cameras

The VT604 can display pictures from a maximum of four IP cams simultaneously in several sizes, up to 640x480 pixels resolution or a single connect USB webcam.

Security, Notifications and Alarms

The VT604 authorization is going through the Radius protocols, that highly increases resistance to forced attacks. Notifications and alarms can be configured in “Logic menu” of web-interface using the states of sensors, timers, triggers and so on. In case of a problems the notification scheme can alert user via email, SMS or SNMP, automatically send pictures and data.

The complete status of the unit and / or sensors can be taken through HTTP, SMS, or SNMP, saved on FTP and Syslog servers or on installed SD card.

Configurable logic

The Web interface allows you to set up logic rules for alerts, notifications & actions such as to switch on a fan and send an email when a temperature exceeds alarm limits.

SNMP

All SNMP functions including SNMP v.1, v.2c, v.3 are supported. VT325 has a Built-in Watchdog timer with NTP synchronisation. SNMP Get function supported.

5-level sensor thresholds

 Sensors with 5-level thresholds allows direct connection to the SCADA system.The thresholds are usually: very low, low, normal, warning and alarm. Sensor levels can be inverted.

Sensor Charting

Web interface integrates and displays graphs of all sensor data. The individual graph (seconds, minutes, hours, days) for each sensor type can be selected. RRD tool is used to build an embedded database of sensor data. This data can be accessed via the interface, or downloaded to Syslog or to FTP or saved on SD card. You can compare sensor data using a Multiplot by plotting a few sensor data along each other.
