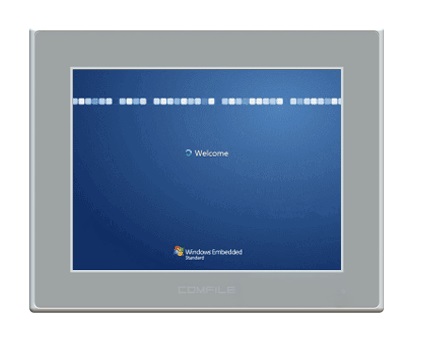

CPCV5-104WF - 10.4" Panel PC Intel BayTrail Quad 1.83GHz

Zoom

Our Price:  £1,326.00(£1,591.20 Inc. VAT) –+ Add to Basket Add Operating System:   NoneWindows 10 IoT Enterprise:  + £59.00Windows 7 Embedded Standard:  + £139.00Windows 7 Professional:  + £189.00 Availability:      Special order, 7-21 day despatch Share Tweet The CPCV5-104WF is a 10.4" LCD panel PC fitted with an Intel BayTrail  Quand core 1.83GHz processor, 4G DDR3 RAM memory and 128GB m-SATA Flash  Hard Disk. The CPCV5-070WR also comes with 1 x EtherNet ports, 4 x USB, 2 x RS232 ports and 1 x RS422/485 port. Supplied as a basic unit without an operating system or pre-installed with a copy of Windows.

• 10.4" colour TFT display
• 1024 x 768 resolution
• Resistive Touch panel
• CPU: Intel BayTrail-M N2930 / Quad Core 1.83GHz
• System Memory : 4G DDR3 RAM
• HDD : 128GB m-SATA (FLASH Hard Disk)
• 1 x DVI
• 4 x USB
• 2 x RS232
• 1 x RS422/RS485
• 1 x Ethernet
• Audio: Realtek High Definition Audio
• Power: 12VDC 1.5A

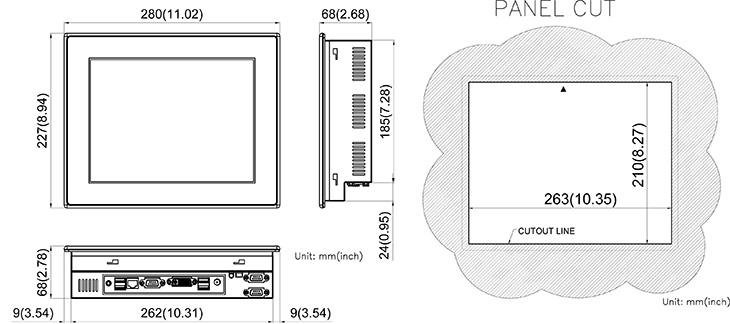

• Size 280 x 227 x 68

Downloads

User Manual >>

Drivers >>
