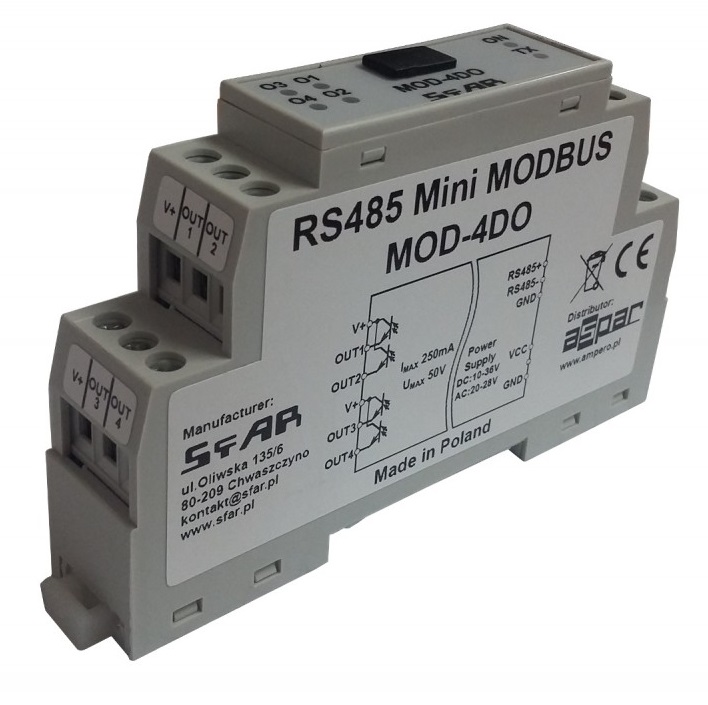

MOD-4DO - Mini RS485 Modbus 4 Channel Digital Output RTU

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

MOD-4DO - Mini RS485 Modbus 4 Channel Digital Output RTU

£76.00

(£91.20 Inc. VAT)

Add USB Programming Lead

+ £3.50

Incoming, 10 days

–

The MODBUS-Mini range is a cost effective solution when only a small number of IO are required. The MOD-4DO has 4 opto-isolated PNP Transistor outputs. Can be configured for Modbus ASCII or RTU. Programmed via USB connection.

4 opto-isolated PNP transistor outputs
55V max @ 250mA per output
Watchdog Function - sets output when not written to after preset period
RS485 - Modbus settavble to ASCII or RTU
Baud rate from 2400 to 115200
USB programming port - free software
Supply voltage: 10-36 VDC; 20-28VAC
Supply Current: 69 mA @ 12V / 38 mA @ 24V
Up to 128 modules on RS485 network
DIN rail mount
Dimensions: 90mm x 56mm x 17mm
Operating Temperature: -20 °C - +65°C

The MOD-4DO module has 4 digital outputs. All outputs are isolated from the logic by optocouplers. This module is connected to the RS485 bus with twisted-pair wire. Communication is via MODBUS RTU or MODBUS ASCII. The baud rate is configurable from 2400 to 115200.

Downloads

User Manual >>

Config Software >>
