MOD-4DI - Mini RS485 Modbus 4 Channel Digital Input with Pulse Counting RTU

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

MOD-4DI - Mini RS485 Modbus 4 Channel Digital Input with Pulse Counting RTU

£76.00

(£91.20 Inc. VAT)

Add Mini USB Cable 2m

+ £3.50

Incoming, expected 19/12/2024

–

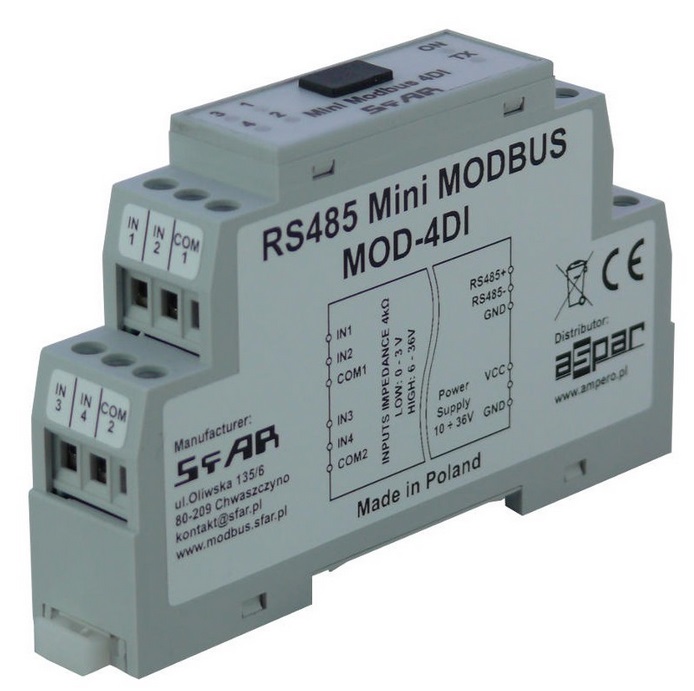

The MODBUS-Mini range is a cost effective solution when only a small number of IO are required. The MOD-4DI has 4 opto-isolated digital inputs with pulse counting and quadrature encoder support. Can be configured for Modbus ASCII or RTU. Programmed via USB connection.

4 opto-isolated digital inputs
closed contact or digital input
logic low - 0-3V, logic high 6-36V
4 configurable 32-bit counters - timers
1 kHz max count rate
2 quad encoder inputs
RS485 - Modbus settavble to ASCII or RTU
Baud rate from 2400 to 115200
USB programming port - free software
Supply voltage: 10-36 VDC; 20-28VAC
Supply Current: 62 mA @ 12V / 35 mA @ 24V
Up to 128 modules on RS485 network
DIN rail mount
Dimensions: 90mm x 56mm x 17mm
Operating Temperature: -20 °C - +65°C

The MOD-4DI has 4 digital inputs with configurable timer/counter option. In addition, terminals IN1 and IN2 and IN3 and IN4 can be used to connect two encoders. All inputs and outputs are isolated from the logic system by optocouplers. Each channel can be individually configured in one of several modes.This module is connected to the RS485 bus with twisted-pair wire. Communication is via MODBUS RTU or MODBUS ASCII. The baud rate is configurable from 2400 to 115200.
