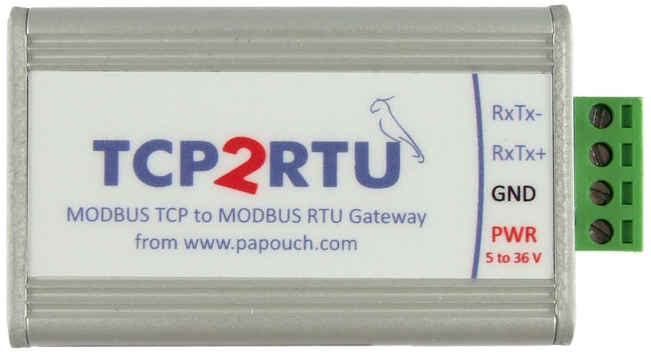

TCP2RTU Modbus TCP to Modbus RTU Converter

Zoom

Our Price:  £174.00(£208.80 Inc. VAT) –+ Add to Basket Availability:      2 in stock, immediate despatch Share Tweet TCP2RTU is a transparent converter of the MODBUS TCP protocol, running over Ethernet, into the MODBUS RTU protocol, running over RS485. TCP2RTU is suitable for systems where a device communicating via the MODBUS TCP protocol is the Master and devices using the MODBUS RTU protocol are of the Slave type.

• MODBUS TCP: 10/100 Mbit Ethernet
• MODBUS RTU: RS485
• Transparent conversion of MODBUS TCP to MODBUS RTU or MODBUS ASCII
• Configuration: Internal web pages or via Telnet
• RS485 Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
• Operation Modes:
  • TCP Master to RS485 Slave
  • RS485 Master to TCP Slave
• Screw Terminals for power and RS485
• DIN Rail Mount
• Dimensions: 54 (63) mm x 24 mm x 33 mm
• Operating temperature: –25 to +75 °C
• Supply voltage: 5 to 36 V at 80 mA

Downloads

User Manual >>

Ethernet Config Utility >>
