MOD-8AO - RS485 Modbus 8 Analogue Outputs Volts, 4-20mA RTU

Zoom

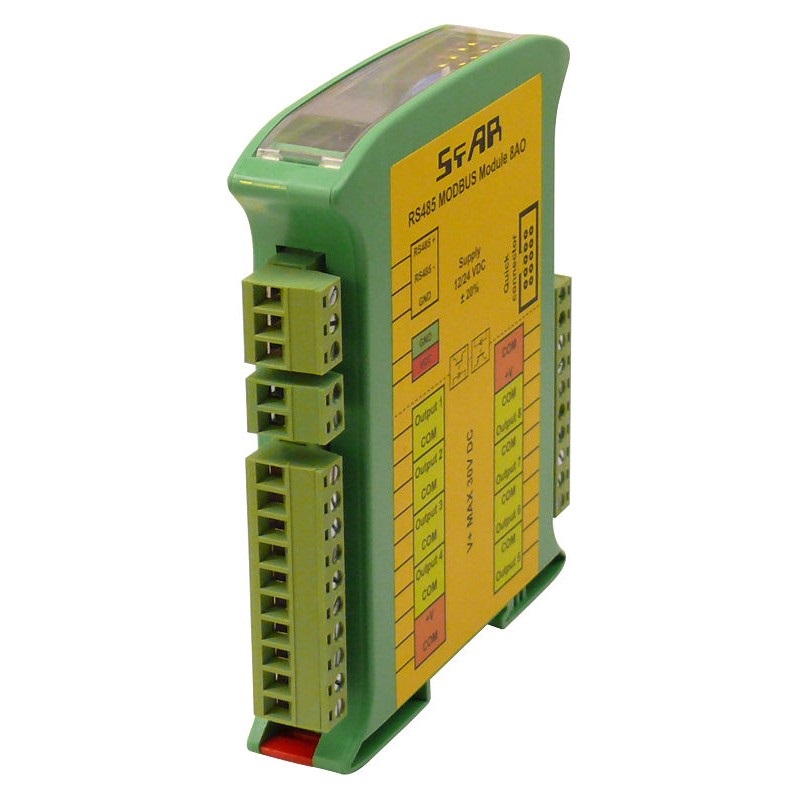

Our Price:  £148.00(£177.60 Inc. VAT) –+ Add to Basket Add Mini USB Cable 2m:    + £3.50 Analogue Outputs:  8 Availability:      2 in stock, immediate despatch Share Tweet The MODBUS-Slim range is a cost effective solution when compact high-IO count Modbus solution is required. The MOD-8AO has 8 analogue outputs that can be set to either volts or 4-20mA. Can be configured for Modbus ASCII or RTU. Programmed via USB connection.

• 8 analogue outputs
  • voltage output range: 0-10VDC
  • current output range: 0-20mA, 4-20mA
• Output resolution: 12 bits
• Conversion time: 16ms / channel
• RS485 - Modbus settable to ASCII or RTU
• Baud rate from 2400 to 115200
• DIP Switch for address setting
• USB programming port - free software
• Supply voltage: 12-24 V DC ± 20%
• Supply Current: 120 mA @ 12V / 100 mA @ 24V
• Up to 128 modules on RS485 network
• DIN rail mount
• Ribbon connector for module-to-module connection
• Dimensions: 120mm x 101mm x 22mm
• Operating Temperature: -20 °C - +65°C

The MOD-8AO has 8 analogue outputs that can be any mix of voltage or 4-20mA current loops. Communication is via MODBUS RTU or MODBUS ASCII. The baud rate is configurable from 2400 to 115200.

The module is designed for mounting on a DIN rail in accordance with DIN EN 5002. The module is equipped with a set of LEDs used to indicate the status of inputs and outputs useful for diagnostic purposes and helping to find errors.

Module configuration is done via USB by using a dedicated free Modbus Configurator software. You can also change the parameters using the MODBUS protocol. The Slim series modules can be easily connected with each other via a ribbon cable. Just connect the power and RS485 to the first module and ribbon cable connect the remaining modules to form a compact IO station without the wiring costs.

Downloads

User Manual >>

Config Software >>
