CHA-043PR - 4.3" Colour HMI with RS232, Modbus Comms

Zoom

Our Price: £222.00(£266.40 Inc. VAT)

–+

Availability:

Special order, 7-21 day despatch

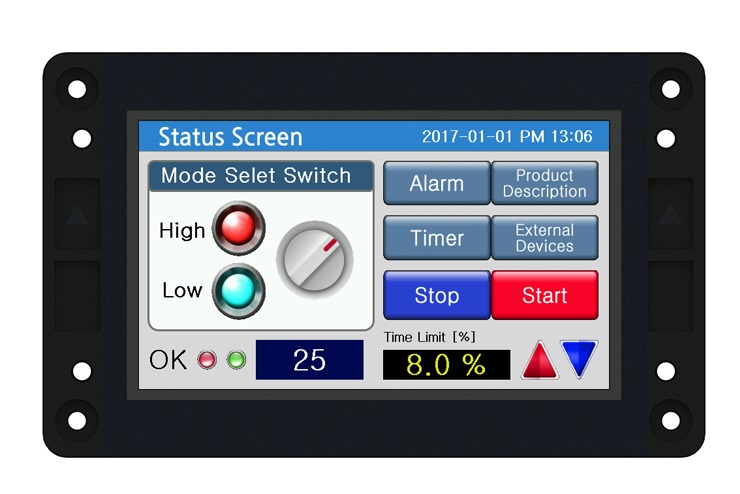

The CHA-043PR is a 4.3" LCD colour HMI for interfacing with Cubloc and other PLC's talking Modbus communication protocol via its single RS232 port. Programmed with a free WYSIWYG HMI editor, the CHA-043PR make an excellent low-cost operator interface for small PLC and microcontroller projects.

Special Offer: Discounts of 5%, 7% and 10% are available when you order 25, 49 and 100 items or more of selected products.

4.3" wide colour TFT display
480 x 272 pixel, 65536 colours
Resistive touch screen
microSD card support for additional memory (Included with purchase)
1 x RS232
Supports MODBUS protocol
Buzzer
Real time clock: Yes, but no backup battery
Power: 12-24VDC
Case: Open-frame
Dimensions : 134 x 82 x 22mm (Panel Cutout Image>>)

Free HMI Editor Software

User Screens
Variables and Expressions
Fonts (Multilingual Text)
Widgets
- Control Button
- Screen Transition Button
- Multi-action Button
- Numeric Input
- Lamp
- Toggle Switch
- Number
- Text
- Trend Graph
- Date and Time
- Text Builder
- Keypad
Shapes and Graphics
- Lines, Rectangles, and Ellipses
- Grid
- Title Bar
- Image
- Dynamic Image
Events and Actions
- Global Events
- Screen Events

Downloads

Users Manual >>

ComfileHMI Editor Software >>

CAD Drawing >>
