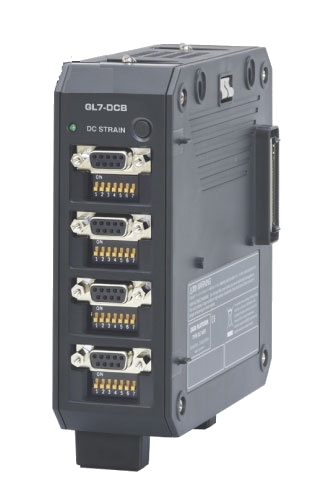

GL7-DCB GL7000 4-Channel Strain Gauge Module

4-ch, DC strain amp, high isolation per channel,

100k samples/s

Strain: 500-20000uSTS, 0.25-10.0mV/V, Voltage: 1-500mV, 1-5V Resistance: 1-500ohm 1k-50kohm

Direct pin-access is possible with internal Wheatstone bridge circuit that allows up to 6-wire full bridge remote sensing.

Uses IEEE Template 1451.4 Class 2 (No. 33) designation for simple TEDS (Transducer Electric Data Sheet) format.

Low-pass anti-aliasing
