- Channels: Up to 4 Channels
- Measurements: Temperature, Humidity, Acceleration, Carbon Dioxide, Illuminance (UV), Voltage and Current (NOTE: Requires Appropriate External Sensor or Input Adapter)
- Functions
- Real-Time Data Capturing
- Show Recorded Readings to LCD Display and Save Recorded Readings
- Set Conditions Using the Menu Setting
- While Using USB Port:
- Output Captured Data in Real-Time
- Output the Saved Data from the Internal Memory
- Full Control of the Data Logger from the PC Application Software
- Send Email Alarm Warnings
- While Using Wireless LAN:
- Output Captured Data in Real-Time
- Output the Saved Data from the Internal Memory
- Full Control of the Data Logger from the PC Application Software
- Display: Backlit Monochrome, Graphical LCD
- Data Storage: Internal Memory (Approx. 4.9 MB), microSD Card (Max. File Size: 1.9 GB)
- Alarm: 1 Channel - Output Signal
- Sampling Rate: 0.5 Sec to 30 Sec and 1 Minute to 60 Minutes (User-Specified)
- Communications: USB, Wireless LAN (GL100-WL Only)
- Power Source: (2) AA Batteries, USB Bus-Powered. (NOTE: The Required Power Capacity is 5 Volts, 1 Amp when AC Adapter for Micro USB Drive is Used. AC Adapter (Not Included)
- Operating Environment: Temperature: -10°C to 50°C (14°F to 122°F)
- Humidity: Up to 80% RH (Non-Condensed)
- Software: Supports up to 10 Units
- OS Compatibility: Windows: Windows 8.1, 8, 7, Vista (32-Bit and 64-Bit), Android: OS 4.3+, iOS: 7+
- Standards Compliance: IP54 (Water Resistance)
- Weight: GL100-N: 125 g , GL100-WL: 130 g
- Dimensions: GL100-N: 66mm x 100mm x 27mm, GL100-WL: 66mm x 100mm x 27mm

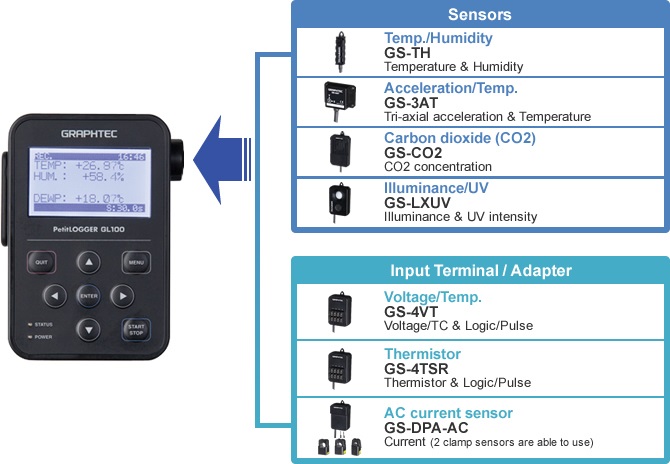

Flexible input module allows wide range of measurements
The GL100 series announces support for additional sensors in volatile wireless and non-wireless environments with ability to exchange input module.
Dual Port Adaptor Dual port adapter connects up to two modules for simultaneous interface (it is not able to connect two sensors of the same type). In this example we have a dual port adapter, an Illuminance/UV sensor and a carbon dioxide sensor | |
Application software for PC
Various measurement screens
Select from 4 screens such as the Y-T (waveform + digital), Y-T (large waveform), digital view and report view to display measurements in real time. The direct-Excel function enables captured data to be written directly to an Excel file.
Data replay screens
Three screens such as the Y-T (waveform), digital and the X-Y graph for specified data are available to view measurements in replay mode. The maximum, minimum, average and peak-to-peak vales between cursors are indicated in the digital display screen.
Simple configuration screens
The number of configuration screens has been reduced to five. Parameters can be set easily while viewing measured waveforms.
Useful functions
Post-process your captured data with useful functions for arithmetic calculation, statistical calculation, search and file format conversion.
Smartphone and Tablet Software (Wifi Required)
Features
Recording Start/Stop, Sampling Interval, Alarm Output (with the mail sending feature). Display/Recording Configurations of GL840/GL240 using the WEB server feature

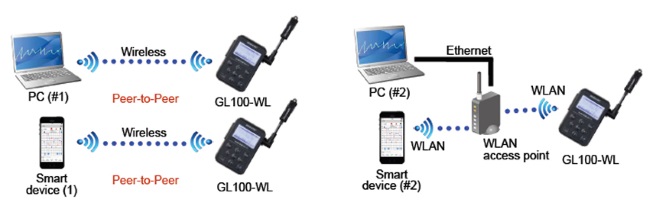

WiFi Interface
With the GL100-WL built-in WiFi interface you can view and download data via a direct SmartPhone or Tablet connection or you can connect via a WLAN.
