Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.
- 10 x independent 30-Amp Relays (Form C, SPDT)
- Built-in web server for browser-based setup and control
- No special software or device drivers required
- Web Browser, XML, Modbus/TCP, SNMP, Remote Services
- XML status and control page make communications with custom computer applications simple
- Can operate as a Modbus/TCP slave
- On/Off and Pulse modes
- Event scheduler with yearly calendar. Schedule up to 100 events.
- Customizable email alerts.
- Up to three temperature and/or humidity sensors can be added for environmental monitoring (one temperature sensor included).
- Dry-contact sensors or switches can be connected for local control of relays or for monitoring external devices.
- Logging; log relay changes, events, Modbus requests, high/low temperatures, input changes, network traffic, and more.
- Real-time clock, can automatically adjust for daylight savings time, sync with NTP server.
- System log provides detailed diagnostic information.
- Simple scripts can be written in BASIC for advanced functionality.
- Configure manually or with DHCP
- Wide power supply range (10-36 VDC)
- DIN-Rail mountable
- LEDs indicate the current relay state
- 1/4-inch tab-connectors
- Power Requirements: Voltage: 10-36VDC
- Operating Curent: 53mA - 1.2A
- Note: Current based upon voltage applied and device settings. See users manual for complete breakdown.
- Operating Temperature: -40°C to 65°C
- Size: 232mm x 62mm x 126mm
- Web Browser, XML, Modbus/TCP, SNMP, Remote Services

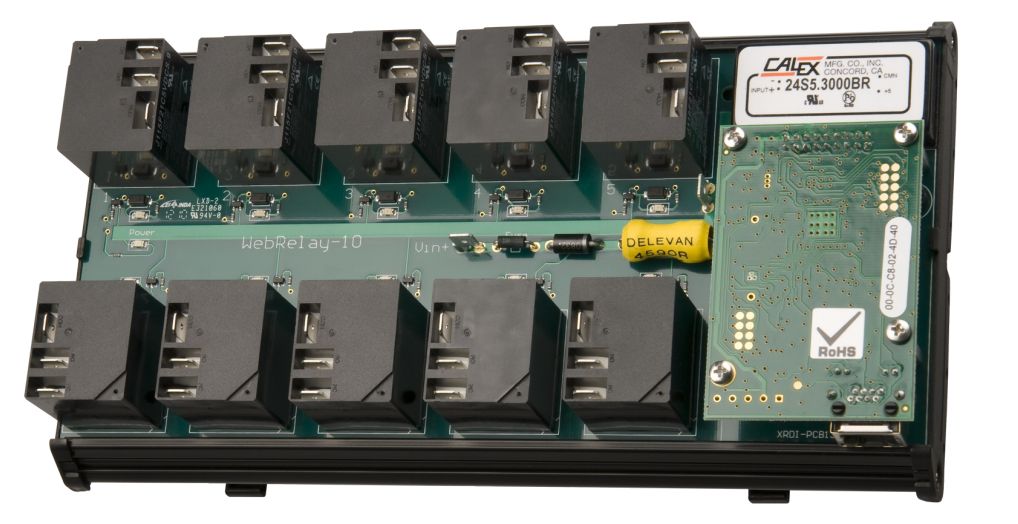

WebRelay-10™ is a robust, industrial relay board with Ethernet communications. It provides remote relay control through its ten large 30-Amp relays. The relays can be individually controlled using a standard web browser or by sending commands from a custom control application. It is self-contained with a built-in web server, and requires no external software, additional network modules, or computers.WebRelay-10™ is designed for industrial applications and can be DIN-Rail mounted inside a control cabinet. Tab connectors (1/4 inch) are used for power and relay contact connection.
The full featured WebRelay-10 Plus™ has all the features found on WebRelay-10™, plus much more. Additional features include an event scheduler, customizable email alerts, two discrete inputs, device logging, and remote temperature and/or humidity monitoring.
CBW Mobile is a simple, reliable way to remotely access your ControlByWeb™ products from anywhere in the world. This app lets you create customized control panels to manage a single device or seamlessly integrate multiple devices on one page.
Downloads
Quick Start Guide >>
User Manual >>
SNMP MIB File >>
CBW iPhone/iPad App >>
CBW Android App >>
Digital Inputs
2
Digital Outputs
10
Temperature Inputs
3
