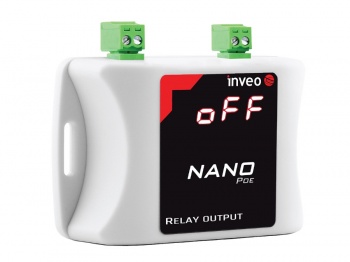

NANO_OUT_POE - Ethernet Relay Unit with POE, Web, Modbus TCP, SNMP

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

NANO_OUT_POE - Ethernet Relay Unit with POE, Web, Modbus TCP, SNMP

£115.00

(£138.00 Inc. VAT)

4 in stock, immediate despatch

–

The NANO_OUT_POE is a Ethernet Web controlled Relay unit with a single mains rated relay. Users can control, the relay from any web enabled device. The unit also supports SNMP for IT users and Modbus/TCP for industrial users. Can be linked with a NANO_IN to transmit a digital signal across a LAN. Powered from POE router or power injector.

1 x Relay Output
- Maximum working voltage: 250V AC, 30V DC,
- Maximum current: 2A
- Modes of operation: Monostable, Bistable, One pulse, Shutter – two relays are used to control shutter motor
Web Interface
LED Display of relay state
Communications Protocols;
- SNMP - for IT alarm trap applications
- Modbus/TCP - for industrial applications
- HTTP (GET)
Dimensions: 27 mm x 74.6x x 50.1 mm
Power supply: PoE IEEE 802 3af or 12-24VDC
Power consumption: 1.5 – 4.2W
Operating Temperature: -10°C to 60°C
CE compliant

Web Interface

The built-in web-server can be used to configure parameters such as IP address etc, and to control the relays, monitor the inputs, and read pulse count values.

Direct connection between modules (bridge connection)

The NANO_OUT_POE can be configured in a bridge connection where the digital input on a NANO_IN_POE control the relay output.

Downloads

User Manual >>

Search Utility >>
