LanTick PE-0-16 - Ethernet 16 Channel Digital input Unit with Web, Modbus TCP, KNX-IP

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

LanTick PE-0-16 - Ethernet 16 Channel Digital input Unit with Web, Modbus TCP, KNX-IP

£245.00

(£294.00 Inc. VAT)

1 in stock, immediate despatch

–

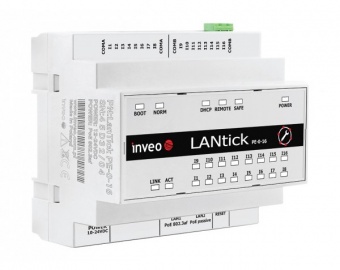

The LanTick PE-0-16 is a Ethernet Web controlled digital IO unit with 16 opto-isolated inputs with pulse counting capabilities. Users can monitor the inputs from any web enabled device . A free cloud service simplifies remote internet access without the need for fixed IP addresses or router port forwarding knowledge. The unit also supports SNMP for IT users, Modbus/TCP for industrial users and KNX/IP protocol for home automation users.

16 opto-isolated digital inputs
Volt-free contact closure or voltage input;
- logic level 1: 10~24V
Inputs also operate as 100Hz pulse counter
Isolation Voltage: 2000Vdc
2 x LAN 10/100 Mb/s, RJ45 ports for daisy-chanining
Web Interface
Upload your own background image - overlay relay controls and input state LEDs
Communications Protocols;
- SNMP - for IT alarm trap applications
- Modbus/TCP - for industrial applications
- KNX/IP - for home automation applications
- HTTP
- Windows or Linux Command Line
Free cloud service for internet control
DIN rail Mount
Dimensions: 102mm x 89mm x 64mm
Power supply:
- 12-24 VDC through a 3.5mm screw connection
- PoE IEEE 802.3 af - LAN 1 port
Power consumption: 1.5 – 4.2W
Operating Temperature: -10°C to 60°C
CE compliant

Web Interface

The built-in web-server can be used to configure parameters such as IP address etc, and to control the relays, monitor the inputs, and read pulse count values.

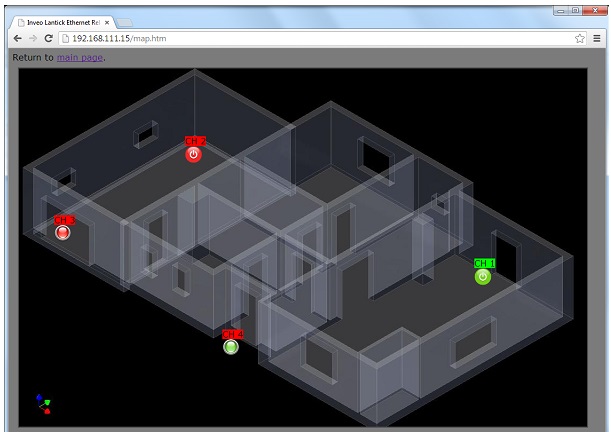

Own Background Image

Upload your own background image - overlay relay controls and input state LEDs. it is also possible to upload 2 images, the displayed image depending upon the state of the digital inputs.

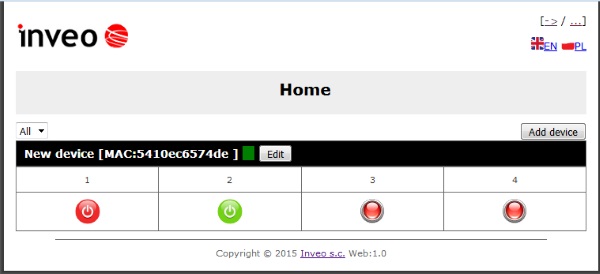

Free Cloud Service

AUse the free cloud service to control your LanTick-Pro devices from anywhere in the world over the Internet. No need for a fixed IP address or knowledge of router port-forwarding.

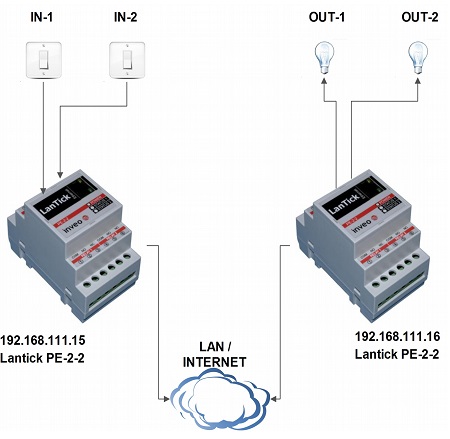

Direct connection between modules (bridge connection)

The LanTick Pro can be configured in a bridge connection where the digital inputs on one device control the relay outputs on another.

KNX/IP

The LanTickPro is equipped with a service protocol compatible with KNX-IP Routing mode. This protocol is designed to control home automation ( "smart homes") and office space. KNX uses a broadcast topology so that it is possible for a single input to activate multiple outputs. Advanced home automation features such as shutter control is included.

LanTick Logger Application

LanTick Data Logger application which enables monitoring, stored in a CSV format and send via e-mail inputs and outputs states.

Downloads

User Manual >>

Search Utility >>

LanTick Logger Application >>

Digital Inputs

Pulse Counter Inputs
