Availability:
Incoming, 1-2 days

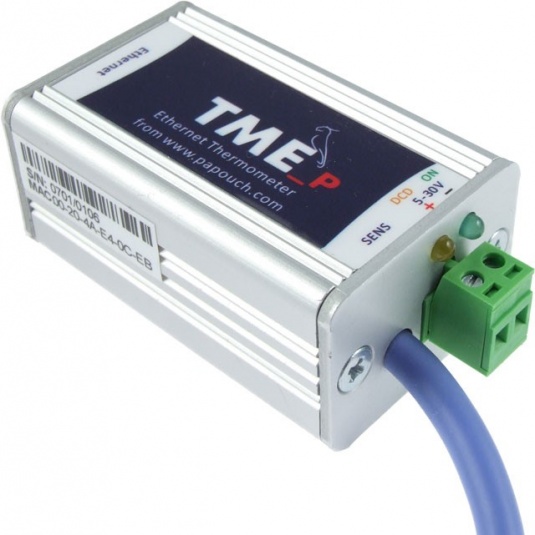

TME is a Thermometer with direct output to Ethernet (IP Thermometer), Measuring range is -55 °C to +125 °C.
TME has an internal WEB server, which allows you to view Temperature directly in your WEB browser - no additional software is required. TME is fully configurable via WEB interface, Temperature can be transmitted over TCP/IP in ASCII (no conversion needed). Supported protocols are: TCP, SNMP, SMTP (e-mail), MODBUS TCP a XML. Temperatue can be easily integrated in your existing WEB site vias standard HTTP GET functions.
Sensor cable is 3 meters long as a standard. If you require, we can produce TME with up to 20m sensor lead. Do not hesitate to contact us if you need a different length.
See TME Ethernet Thermometer
TME is a simple sensor with direct Ethernet output (IP Thermometer). It can measure temperatures from -55 °C to +125 °C. It has an internal WEB server allowing you to view the temperature online.
IP thermometer TME can send e-mail if your temperature thresholds are exceeded. It can send current temperature to your existing WEB server, where it can be easily viewed. It is sent by HTTP GET or HTTP POST (as an XML), very well known by any WEBmaster. You don't have to learn new things just to have temperature on your WEBsite.
TME communicates via TCP protocol. However it has vast communication options like MODBUS TCP, SNMP, XML, WAP, ... thanks to that you can easily integrate TME into your existing system. For example: SNMP can be used to watch temperature of racks in server rooms.
You can choose from several options of modern WEB interface. If you have more than one TME, you can easily view multiple temperatures on a single WEB page.
WEB interface in english is a necessary standard. TME also includes a mini page suitable for mobile phone or PDA.
Probe is connected via a silicon cable with high temperature resistance.
IP thermometer is fully configurable via WEB interface. WEB interface is password protected in two levels - one level (user) allows you to view the measured-out values, second level (admin) allows you to configure TME.
TME Datasheet: https://cdn.en.papouch.com/data/user-content/old_eshop/files/TME_C_EU/tme_en.pdf
