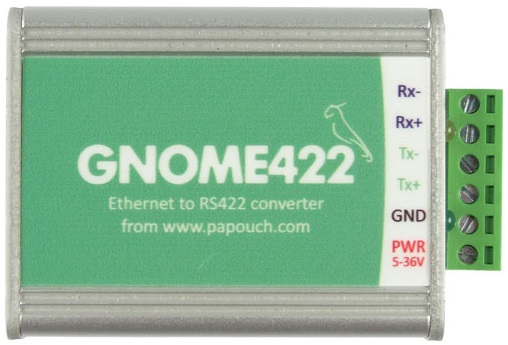

GNOME422 Ethernet to RS422 Serial Converter

Zoom

Our Price:  £123.00(£147.60 Inc. VAT) –+ Add to Basket Add DIN Rail Clip:    + £8.00 RS422 Ports:  1 Availability:      Special order, 7-14 day despatch Share Tweet The GNOME422 is a simple Ethernet to RS422 converter. It enables a device with RS422 to easily connect to the Ethernet, to extend the RS422 line via the Ethernet or to establish a network of RS422 via the Ethernet. Power supply 5 to 30V. Virtual serial port. Protocols: TCP/IP, UDP, SMTP (e-mail).

• Ethernet to RS422 line conversion
• Connection to 10/100Base-T Ethernet via RJ45 connector
• RS422 connected via a slip-on bus bar
• Data transmission speed 300 Bd to 460 kBd
• Used signals: Rx+, Rx-, Tx+, Tx-
• RS422 protection against overvoltage
• Secured against unauthorized access
• Power supply range: 5 to 30V
• Indication of power supply, data transmission, network connection and activity
• Mountable to DIN rail

GNOME422 is a simple Ethernet to RS422 converter. It enables a device with RS422 to easily connect to the Ethernet, to extend the RS422 line via the Ethernet or to establish a network of RS422 via the Ethernet. Power supply 5 to 30V. Virtual serial port. Protocols: TCP/IP, UDP, SMTP (e-mail).

GNOME422 is an inexpensive Ethernet to RS422 converter. It can be used to easily connect a device with the RS422 interface to the Ethernet or to extend the RS422 line via the Ethernet. Its design is based on the GNOME232 converter (Ethernet to RS232 converter), which is popular for its features and low price

The device is supplied including a “virtual serial port”, i.e. software which creates a new serial port in the Windows operating system directed to the GNOME422 module via the Ethernet interface. Thus it is possible to use also programs which only communicate via a serial port.

The module can be configured via internal web interface (in Mozilla Firefox or Internet Explorer), configuration program or TCP terminal. The GNOME422 module understands even the DHCP protocol so an IP address can be assigned automatically to it. Power supply and functionality is indicated by light indicators.

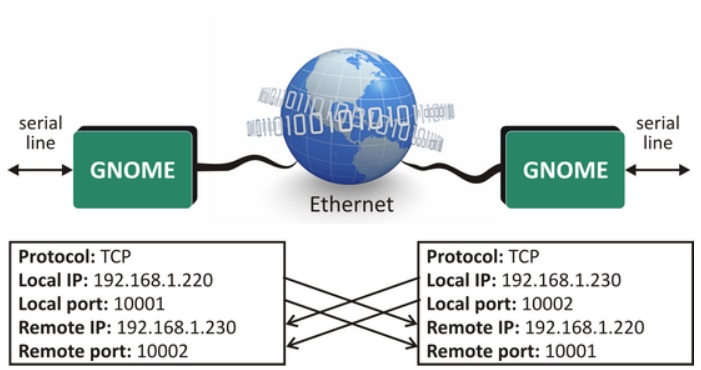

Box-to-Box Mode

A pair of GNOME485's can be set up in Client-Server mode where they will send serial data between each other without any PC intervention.

Com Port Redirector

Com Port Redirector (CPR) is software that maps ‘virtual COM’ ports on a PC platform. It redirects application data destined to an attached device via the PC’s local serial (COM) port. Rather than going out the local port, the data is transmitted across the Ethernet network using TCP/IP. A device server attached to the network receives the data and transfers it from its own serial port to the attached equipment.

Conversely, data sent from the networked equipment to the serial port of the device server is transmitted back to the application software on the PC via Ethernet. Com Port Redirector receives the data and presents it to the control application as if it came from a COM port via a local serial connection.

Downloads

User Manual >>

Ethernet Configurator Utility >>

Com Port Redirector >>

Com Port Redirector Manual >>
