MonoDAQ-E-DI4 EtherCAT Isolated 4-Channel Digital Input Unit

Zoom

Our Price: £481.20(£577.44 Inc. VAT)

–+

Digital Inputs: 4

Availability:

Special order, delayed despatch

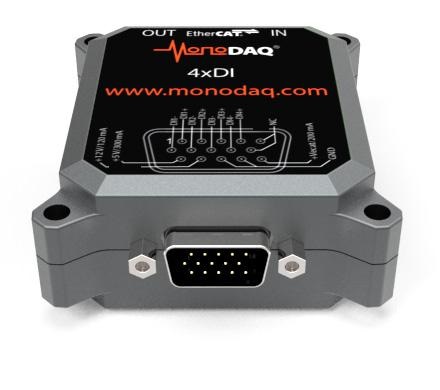

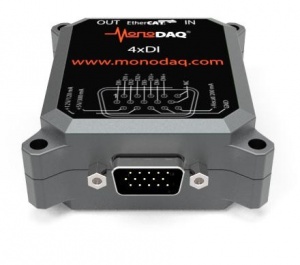

The MonoDAQ-E-DI4 is a robust, EtherCAT isolated digital input unit suitable for reading data off digital sensors as well as for demanding test automation tasks. Three power supply voltages (5V, 12V and device voltage supply level) available on the front connector. EtherCAT interface, signal and power over the same cable. Supplied with free copy of DEWESoft DAQ Software.

Number of input channels: 4
Max. sample rate: 20 kS/s
Compatibility: TTL / CMOS Voltage Levels
Input low level: < 1 V
Input high level: > 2 V
Input high current @5V Vin: 3 mA typ.
Input high current @30V Vin: 3 mA typ.
Overvoltage protection: 30 V continuous, 65 V peak
Isolation: galvanically isolated channel-channel and channel-ground
Signal and power isolation from EtherCAT to front-end
EtherCAT bus, daisy-chaining with single cable up to 50m device-device
Data interface EtherCAT, 100Mbit/s
Data interface connectors: RJ45 (1 cable for data, power and sync, daisy chainable)
Power supply: 12V to 50V
Temperature range: -20°C to 60°C
Dimensions: 70x62x28 mm
DEWESoft X3 software support
Contents:
- 1x MonoDAQ-E-DO4
- 1x Passive PoE power injector
- 1x USB-to-12V power supply

Devices are daisy-chained using standard RJ45 cable.

Software

The MonoDAQ-E-DI4 comes with a built-in LITE licence for DEWESoft, a powerful data acquisition, processing and visualization tool.

DEWESoft features all sorts of data analysis tools that can be used in real time on the incoming data. The user can design his/her own user interface with various graphs. All that is required are a few mouse clicks. If the predefined functions are not suitable, mathematical equations can be entered and executed as well. Data can be recorded and exported to all sorts of file formats to allow further analysis and treatment in the tool of your choice. Besides recording data DEWESoft can also record video allowing to visually link data to events.

Features

time domain recorder
XY recorder
FFT recorderscope
triggered storing
GPS
video
statistics (RMS, peak-peak, STDV etc.)
IIR-, FIR-filters
integration, derivation
vector analysis
export to Excel, Matlab, Flexpro
