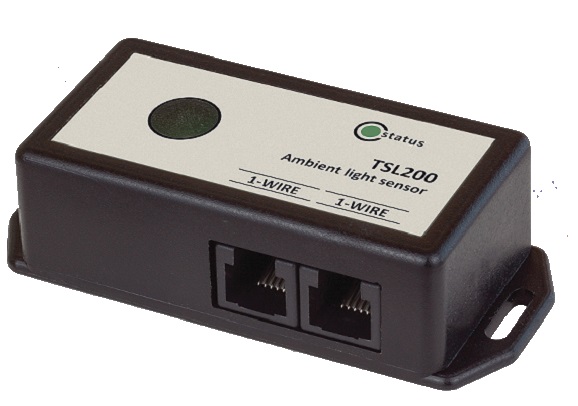

TSL200 - Ambient Light Sensor

Zoom

Our Price: £52.00(£62.40 Inc. VAT)

–+

Availability:

Special order, 7-10 day despatch

The TSL200 is a 1-Wire ambient light sensor with high dynamic range and resolution for use with Teracom TCW Controllers. The dynamic range of 83000 lux guaranties precise measurements even directly to the light sources. The sensor measures the intensity of the visible light. It has a strong infrared (IR) rejection. This makes the spectral response of the sensor very close to the response of the human eye. The 1-Wire ambient light sensor has two RJ11 connectors for easy daisy chain sensors wiring.

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

Supply voltage range (1-Wire bus) 4.5 to 5.5 V
Maximum supply current (1-Wire bus) 4 mA
Illuminance range 0 to 83000 lux
Resolution 1 lux
Accuracy ±5 %
Measurement drift across temperature 0.01 %/°C
Operating temperature range 0 to +40 °C
Operating relative humidity range 5 to 95%RH(non-condensing)
Ingress protection IP30
Dimensions 85 x 35.1 x 23.5 mm

TSL200 is a 1-Wire ambient light sensor with high dynamic range and resolution. The dynamic range of 83000 lux guaranties precise measurements even directly to the light sources.

The sensor measures the intensity of the visible light. It has a strong infrared (IR) rejection. This makes the spectral response of the sensor very close to the response of the human eye.

The 1-Wire ambient light sensor measures up to 83000 lux. It has automatic full-scale settings. This capability allows light measurement over a 23-bit effective dynamic range. This makes the sensor very precise on dark as well as on a very intensive light.

The internal digital signal processing guarantees the long-term stability and repeatability of the measurements. With full factory calibration, the sensor requires no additional calibration on the customer’s side.

The sensor communicates over the 1-wire interface. In order to make easier daisy-chain wiring, there is two RJ-11 connector available on the panel.

The presence of a unique number for each sensor allows installation of multi-sensor systems. Moreover, the 1-Wire ambient light sensor can be combined with sensors for other environmental parameters to build a single-point multiparameter environmental monitoring.
