- 32 Digital input/output channels
- 3 Counter Channels
- 3 Quadrature Encoder Channels
- Windows, MAC, Linux drivers
- Supplied with a free copy of NextView 4 Live
- Supplied with programming examples in VB, C++ Delphi, .NET
- Can be used with LabVIEW Software

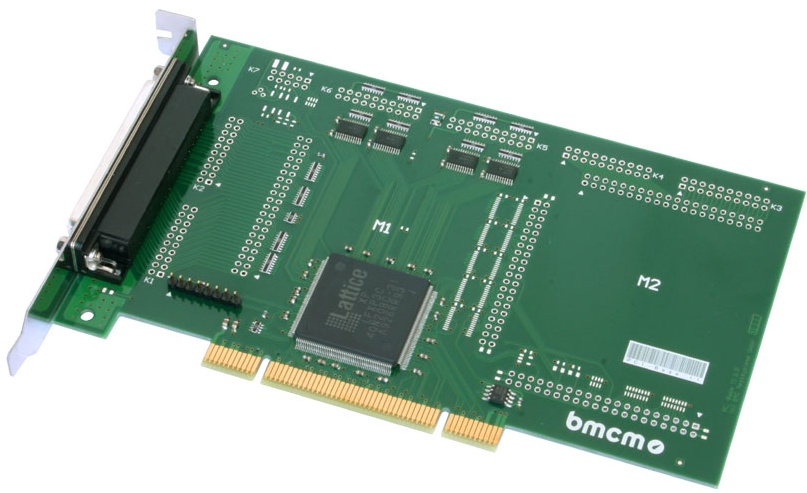

The PCI-PIO features two 16-bit bidirectional digital ports. The port lines are led out to a 37-pole Sub-D female connector. The short latency of the PCI interface makes the card especially attractive for controlling tasks.
Up to 3 counters or incremental encoders can be connected to any digital input of the PCI-PIO. The relevant digital lines are programmed to counter mode via software. To set an incremental encoder to the zero position, the use of an external counter reset is supported.
Included as accessory is the hardware independent ActiveX control LIBAD API for programming under Windows, MAC or Linus. In addition the PCI-PIO can be used under Windows with the powerful software for acquisition and processing of measuring data NextView®4. It is available as "Professional" or "Lite" versions. LabView VI's are also available.
Downloads
User Manual >>
Software Drivers >>
Software Installation Guide >>
LIBAD Programming Library Guide >>
LIBAD Library for Windows >>
LIBAD Library for MAC >>
LIBAD Library for Linux >>
LabVIEW VI Guide >>
LabVIEW VI >>
Digital Inputs
32
Digital Outputs
32
