Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

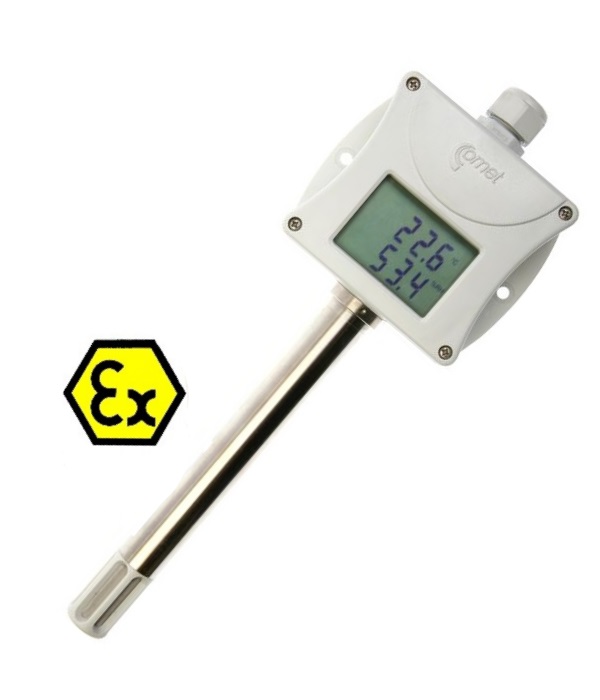

T3113Ex Intrinsically Safe Temperature and Humidity Duct mount probe with 4-20mA output

£303.00

(£363.60 Inc. VAT)

Incoming, 10-14 days

–

+

The T3113Ex is an intrinsically safe temperature and humidity transmitter with an isolated 4-20mA output for use in potentially explosive environments. ATEX certified for outdoor or indoor use. Duct Mount

Measured Value: Relative Humidity + Temperature
Construction Type: Duct Mount (150mm)
Design: Industrial
Temperature Measuring Range: -30 to +80°C
Relative humidity range: 0 to 100%
Accuracy of temperature output: ±0.6°C
Accuracy of humidity: ±3.0% relative humidity from 5 to 95% at 23°C
Temperature operating range: -30 to +80°C
ATEX certification for use in potentially explosive environments.
IP protection: IP65 electronics, IP40 sensors
Power: 9-30Vdc, current consumption approximately 6mA
Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
Weight: approximately 220g

Downloads

User Manual >>

ATEX Certificate >>

Temperature Inputs

1

Humidity Inputs

1
