T3111P Temperature and Humidity probe for Compressed Air systems - 4-20mA output

Special Offer: Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

T3111P Temperature and Humidity probe for Compressed Air systems - 4-20mA output

£338.00

(£405.60 Inc. VAT)

Sensor Cable Length

Special order, 10-15 day despatch

–

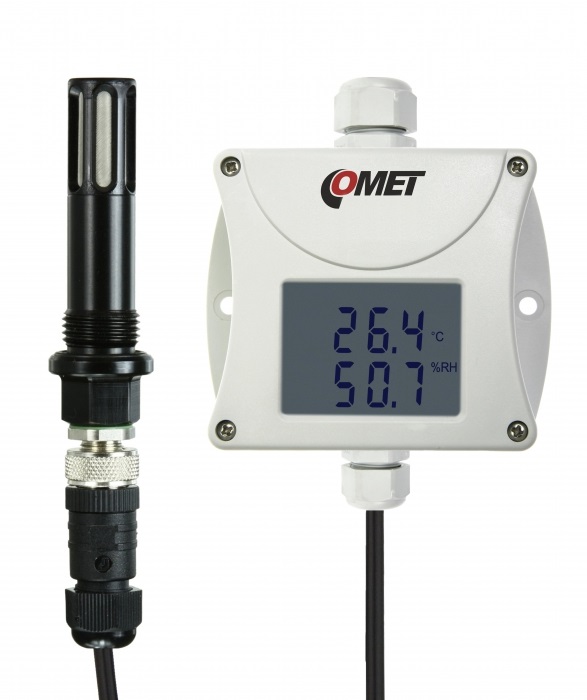

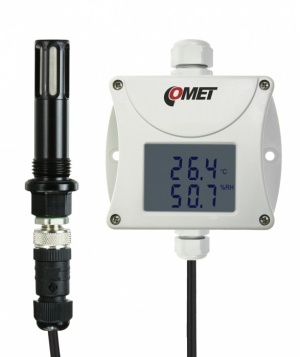

The T3111P is a temperature and humidity transmitter with an external probe for use with Compressed Air lines, LCD display and dual isolated 4-20mA outputs. Available with a sensor cable length of 1m, 2m and 4m.

Measured Value: Relative Humidity + Temperature
Construction Type: With T+RH Probe on 1m Cable
Design: Industrial, G1/2 with O-ring
Temperature Measuring Range: -30 to +105°C
Relative humidity range: 0 to 100%
Measuring range up to 25 bars
Air flow velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)
Accuracy of temperature output: ±0.6°C
Accuracy of humidity: ±3.0% relative humidity from 5 to 95% at 23°C
Temperature operating range (of case with electronics) -30 to +60°C
IP protection: IP65 electronics, IP40 sensors
Power: 9-30Vdc, current consumption approximately 6mA
Dimensions: 88.5 x 148 x 39.5 mm (W x H x D), stem length 53 mm
Weight: approximately 220g

Downloads

User Manual >>

Temperature Inputs

Humidity Inputs
