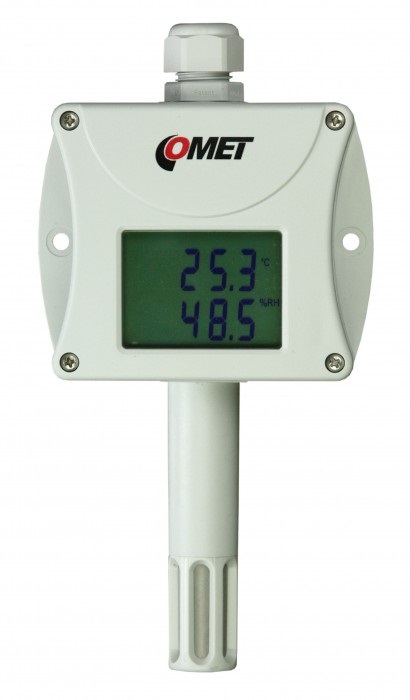

T3110 Temperature and humidity probe with LCD and 4-20mA output
Special Offer:  Discounts of 7%, 10%, 12.5% and 15% are available when you order 10, 25, 50 and 100 items or more of this product.

T3110 Temperature and humidity probe with LCD and 4-20mA output

£230.00
(£276.00 Inc. VAT)
Incoming, 10-14 days
–
+

The T3110 is a low-cost temperature and humidity transmitter with an LCD display and isolated 4-20m outputs.

  • Measured Value: Relative Humidity + Temperature
  • Construction Type: Ambient Air
  • Design: Industrial
  • LCD Display
  • Temperature Measuring Range: -30 to +80°C
  • Relative humidity range: 0 to 100%
  • Accuracy of temperature output:    ±0.4°C
  • Accuracy of humidity: ±2.5% relative humidity from 5 to 95% at 23°C
  • Temperature operating range: -30 to +80°C (LCD only up to 70°C)
  • IP protection: IP65 electronics, IP40 sensors
  • Power: 9-30Vdc, current consumption approximately 6mA
  • Dimensions: 88.5 x 170 x 39.5 mm (W x H x D), stem length 53 mm
  • Weight: approximately 150g


Downloads

Quick Start Guide >>

User Manual >>



Temperature Inputs
1
Humidity Inputs
1
