QuidoDuplex RS8 - Send Digital Signals across RS485 - 8 Channel

£195.00

(£234.00 Inc. VAT)

Add DIN Rail Holders

+ £19.00

Special order, 7-14 day despatch

–

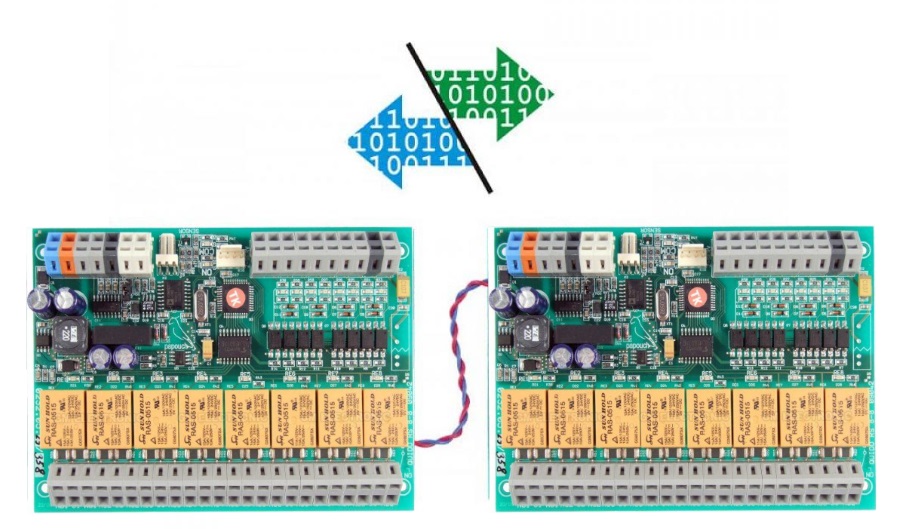

QuidoDuplex RS is a set of two I/O modules for RS485 line (two wires only) with a special firmware designed specifically to transmit digital I/Os over RS485 line as an autonomous system - no PCs or PLCs needed. If one input is turned on, the corresponding output on the other unit is also turned on. Bi-directional.

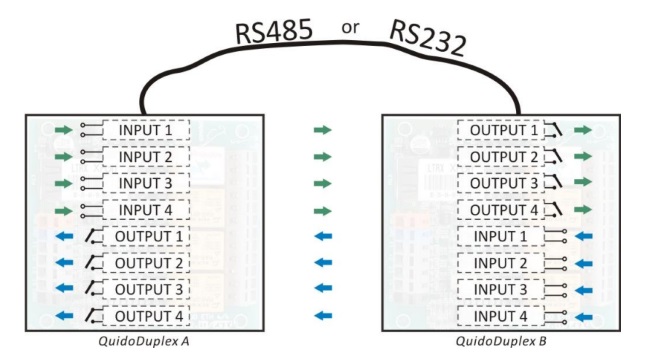

Digital two state signals are transmitted from one to the other and also the other way via RS232 or RS485
8 x Digital Inputs - activate voltage 7 to 28 V or contact closure (using main power as "wetting" voltage)
8 x Relay Outputs - change-over rated 60VAC, 85VDC @ 5A
Maximum working distance 1200 meters when using RS485 line (more with repeaters)
Wide power voltage range: 8V to 30 V DC.
Set consists of two I/O modules Quido RS 4/4 (or 8/8) with special firmware.
Operating temperature: -20 °C to +70 °C

Downloads

User Manual >>

Digital Inputs

Digital Outputs
