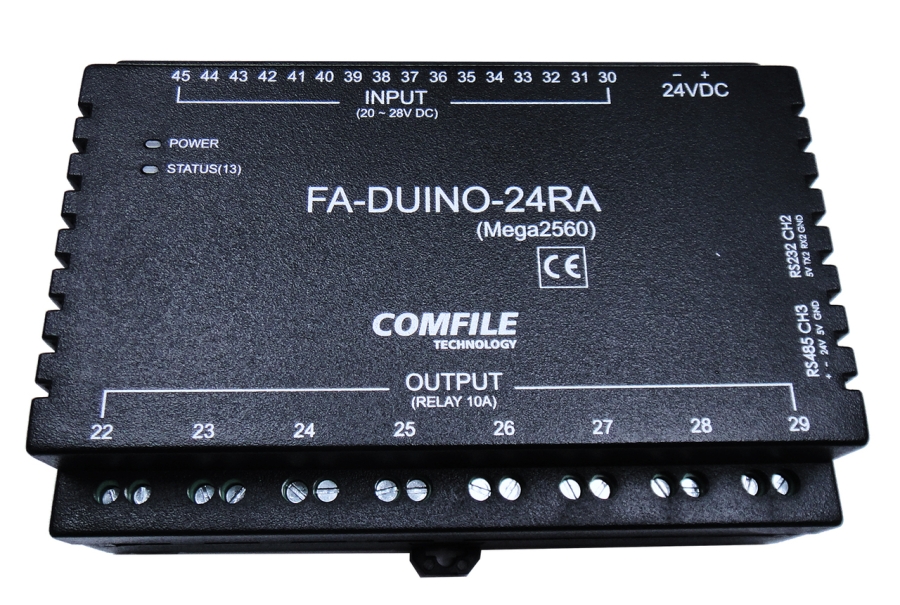

- Uses the AT MEGA2560 Processor
- 16 x Digital Inputs (9V~26VDC / Min10mA )
- 8 x Relay Outputs (0~250VAC/10A , 0~30VDC / 10A)
- 4 x 0-10V analogue inputs at 10-bit
- 4 x 0-20mA analogue inputs at 10-bit
- Program memory: 256KB
- SRAM: 8KB
- EEPROM: 4KB
- Clock Speed: 16MHz
- 2 x RS232 communication port
- 1 x RS485 communication port
- LCD and keypad Connectors
- FREE Development tools - http://arduino.cc
- DIN Rail Mount
- Dimensions 128mm x 108mm x 45mm
- 24V DC Power
For more information about Arduino PLCs and alternative Programming Software, see this application note >>
Downloads
User Manual >>
Arduino IDE >>
Modbus Master-Slave Libraries >>
Analogue Inputs
8
Digital Inputs
16
Digital Outputs
8
